Oxygen Concentrator
Showing all 12 results
-

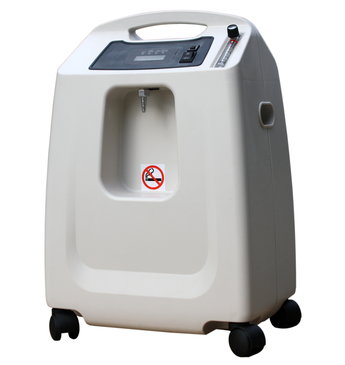

Oxygen Concentrator AM-AC-10
Features
AC-10 10L oxygen concentrator is the model which can be optional to equip with one deluxe alloy barb, using a tubing to connect the 5-way splitter. It meets all range flow requirements for adult, pediatrics and child use in hospital, households, nursing rooms and etc. It can stably work in 24 hours a day and needs few maintenances of the main machine among its whole lifetime. Users do not need to open the machine body to do replacement of filters
- 24 hours work continuously
- Three alarm systems:power off alarm pressure circulation fault alarm and compressor fault alarm
- AVG oxygen purity: 93%±3%
- Low sound level: less than 55dB (A)
- Net weight: only 23.2kg
- Strong ABS shell, fashion style.
-

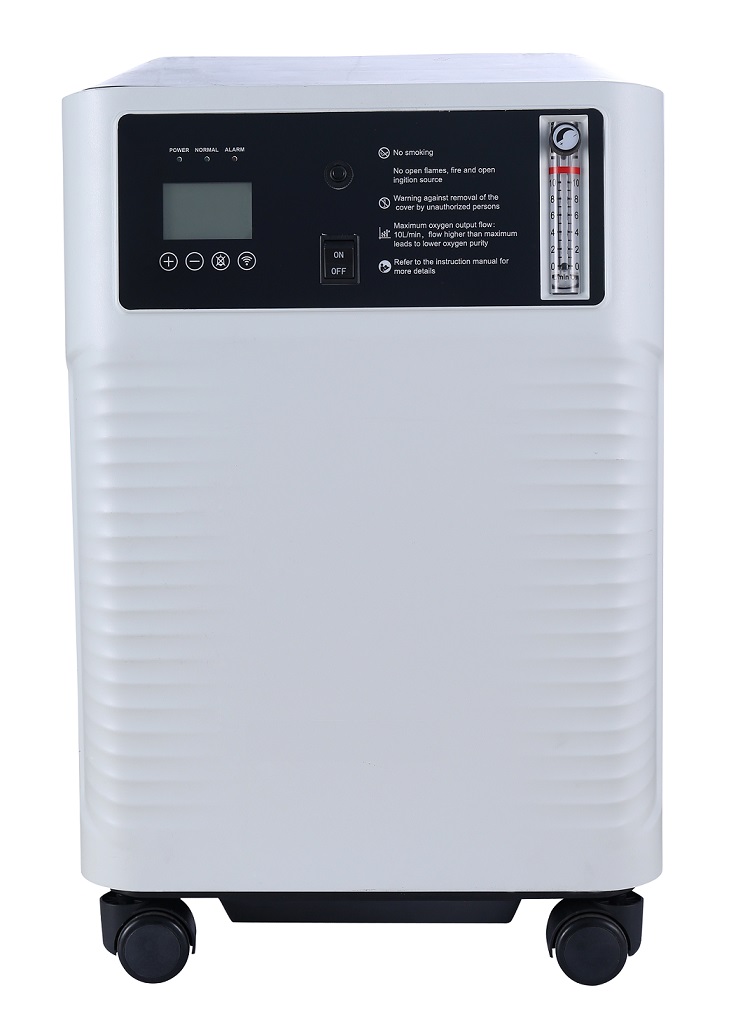

Oxygen Concentrator AM-AC-10N
Features
AC-10N 10L oxygen concentrator is the model which can be optional to equip with one deluxe alloy barb, using a tubing to connect the 5-way splitter. It meets all range flow
requirements for adult, pediatrics and child use in hospital, households, nursing rooms and etc. It can stably work in 24 hours a day and needs few maintenances of the main machine
among its whole lifetime. Users do not need to open the machine body to do replacement of filters
- 24 hours work continuously
- AVG oxygen purity: 93%±3%
- Low sound level: less than 55dB (A)
- Strong ABS shell, fashion style.
-
Oxygen Concentrator AM-AC-5
Features
AC-5 is the model which can produce average 93% purity oxygen to meet big flow requirements of hospital, home, housecare use and etc. It can stably work in 24 hours a day and needs few maintenances of the main machine among its whole lifetime. Users do not need to open the machine shell to attain filters replacement.
- 24 hours work continuously
- Optional for using 2-way oxygen splitter for two peoples
- Three reliable alarm systems: power off alarm, pressure circulation fault alarm and compressor fault alarm
- AVG oxygen purity: 93%±3%
- Low sound level: less than 45dB (A)
- Net weight: only 15.9kg (for 5 liters)
- Strong ABS shell: Anti-aging, fashion design
-

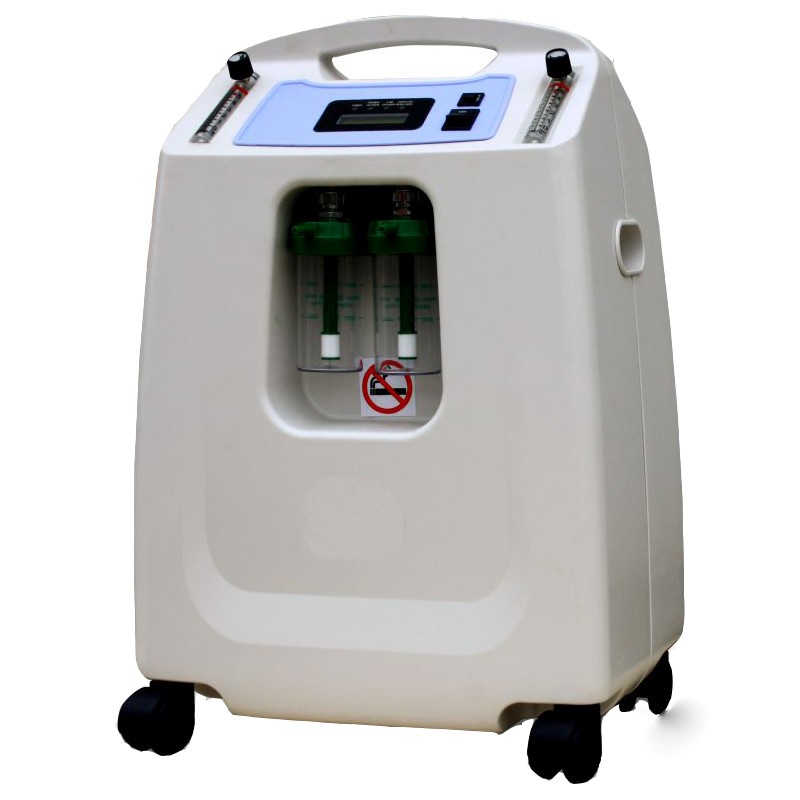

Oxygen Concentrator AM-AC-5D
Features
AC-5D is the model which can produce average 93% purity oxygen to meet big flow requirements of hospital, home, housecare use and etc. It can stably work in 24 hours a day and needs few maintenances of the main machine among its whole lifetime. Users do not need to open the machine shell to attain filters replacement.
- 24 hours work continuously
- Using 2-way oxygen splitter for two peoples
- Three reliable alarm systems: power off alarm, pressure circulation fault alarm and compressor fault alarm
- AVG oxygen purity: 93%±3%
- Low sound level: less than 45dB (A)
- Net weight: only 15.9kg (for 5 liters)
- Strong ABS shell: Anti-aging, fashion design
-

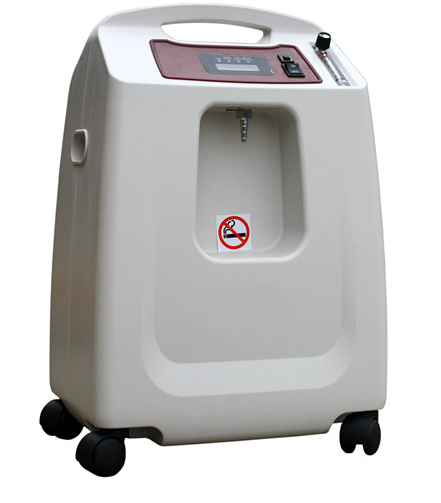

Oxygen Concentrator AM-AC-8
Features
AC-8 is the model which can produce average 93% purity oxygen to meet big flow requirements of hospital, home, Skincare center, glass work, welding industrial use and etc. It can stably work in 24 hours a day, always maintain oxygen purity at 93% at 8L/min and need few maintenances of the main machine among its whole lifetime. Users do not need to open the machine shell to attain its filters replacement. And this model can be customized as per client’s special request. Optional to use the 4-way oxygen splitter.
-

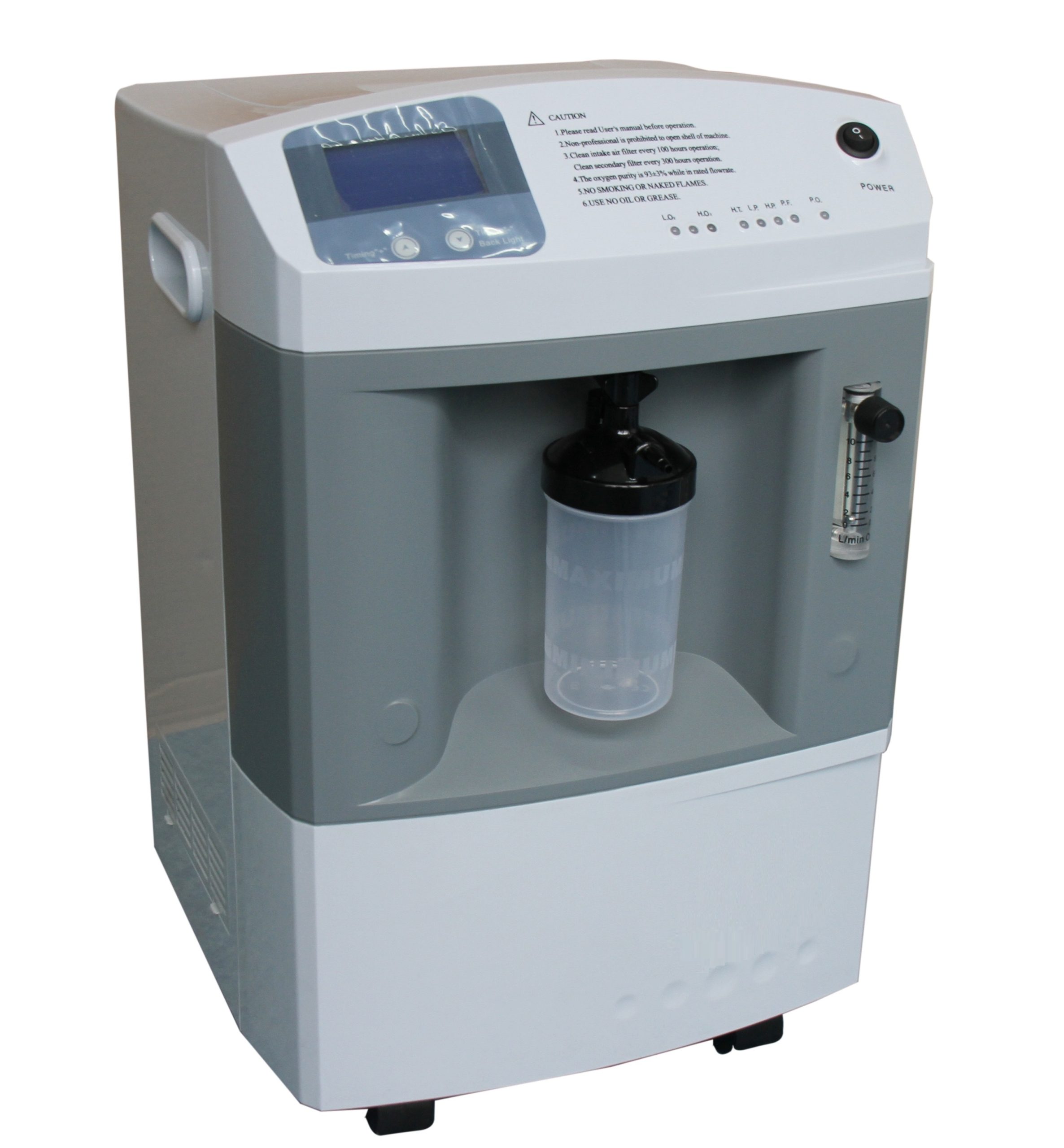

Oxygen Concentrator AM-ACJ-10
Technical Specifications
PARAMETER SPECIFICATION Flow Range 0.5-10L Purity 93±3% Outlet Pressure 0.04-0.07MPA(6-10PSI) Sound Level ≤50db Power Consumption ≤880W Alarm Power Failure alarm,High&low pressure alarm,Low oxygen concentration alarm
Optional Dual Flow, Nebulizer,Pluse Oximeter (SPO2) Net Weight 27kgs Size 365x375x600mm -
Oxygen Concentrator AM-ACJ-5
Technical Specifications
PARAMETER SPECIFICATION Flow Rate 0.5-5LPM Purity 93%(±3%) Outlet Pressure 0.04-0.07MPA(6-10PSI) Sound Level ≤50db Power Consumption ≤300W Alarm Power Failure alarm,High&low pressure alarm,Low oxygen Concentration alarm Optional Dual Flow, Nebulizer, Pulse Oximeter (SPO2) Net Weight 15KGS Size 348mm*280mm*510mm(l*w*h) -

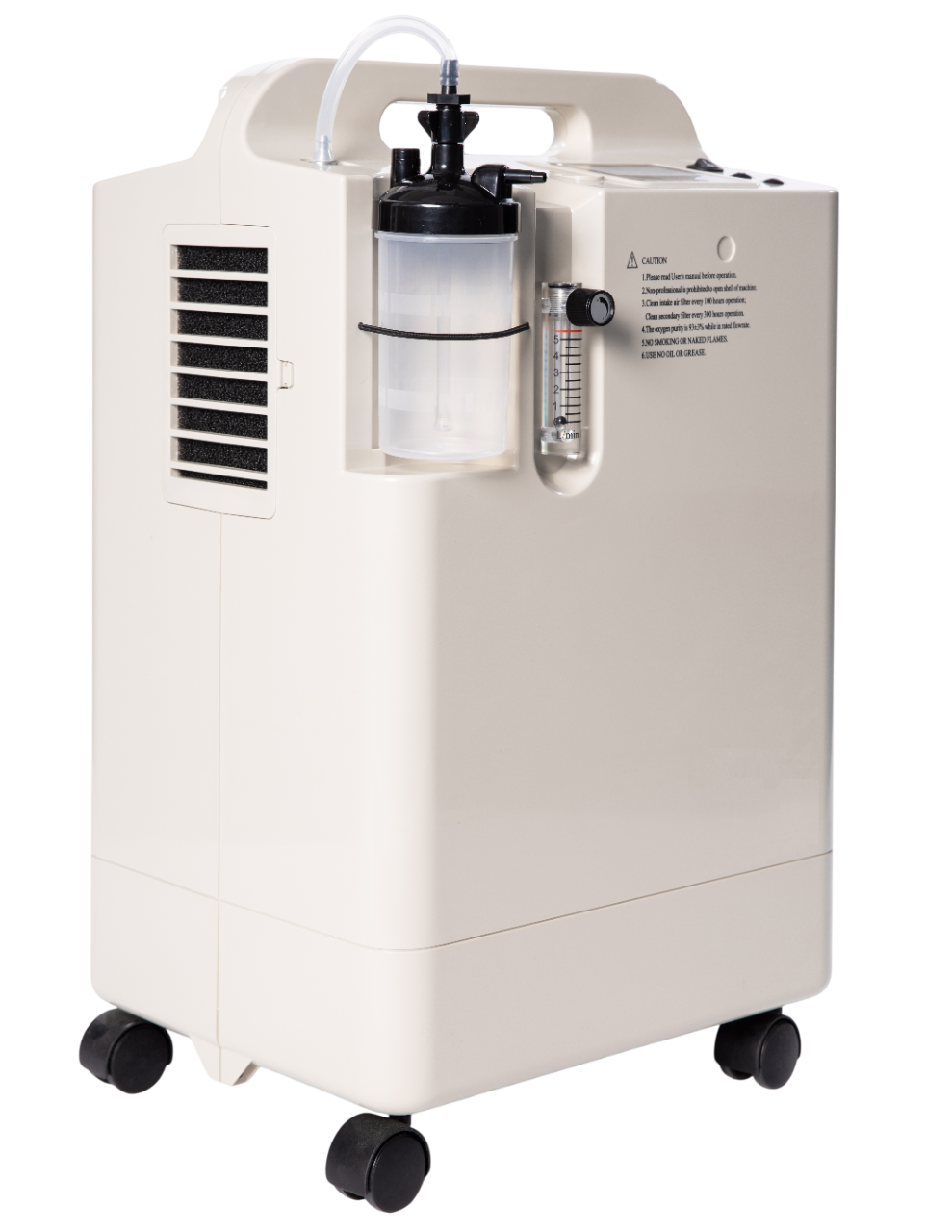

Oxygen Concentrator AM-ACJ-5BW
Technical Specifications
PARAMETER SPECIFICATION Flow Rate 0.5-5LPM Purity 93%(±3%) Outlet Pressure 0.04-0.07MPA(6-10PSI) Sound Level ≤40db Power Consumption ≤ 300W Alarm Power Failure alarm,High&low pressure alarm,Low oxygen concentration alarm
Optional Dual Flow, Nebulizer,Pluse Oximeter (SPO2) Net Weight 15KGS Size 360mm*300mm*600mm(l*w*h) -
Oxygen Concentrator AM-ACN-3
Features
- America PSA technology offer nature oxygen.
- France Imported molecular sieve bed.
- Reliable and durable oil free compressor.
- Available 24 hours continuous working.
- Self diagnostic system with error code indication.
Function
Basic function: Pressure alarm, power offer alarm, timing, abnormal voltage alarm,
Optional: nebulizer , purity alarm, remote control
-

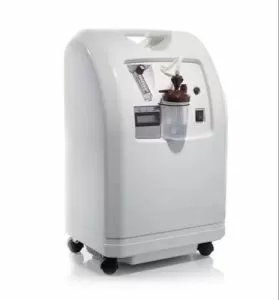

Oxygen Concentrator AM-ACN-5
Features
- America PSA technology offer nature oxygen.
- France Imported molecular sieve bed.
- Reliable and durable oil free compressor.
- Available 24 hours continuous working.
5. Self diagnostic system with error code indication
Functions
Basic function: Pressure alarm, power offer alarm, timing, abnormal voltage alarm,
Optional: nebulizer , purity alarm, remote control
-
Oxygen Concentrator AM-ACN-5D
Working Principles
AC series of medical oxygen concentrator adopts the current world’s advanced transformation absorption (PSA) principle. It separates and filter the oxygen and nitrogen under common temperature and pressure, then obtain the medical oxygen. It is consistent with the pharmaceutical industry standards (YY 0298-1998).
Pure physical manner of making oxygen,without any additives,no disposables,pollution-free, fresh and natural.
Features
- It adopts PSA principle to obtain the oxygen by pure physical manner. It can continuously produce oxygen in an efficient and safe manner.
- France imported molecule sift helps produce pure oxygen.
- High and low voltage alarming system
- LED time counting system
- Power off alarming system
- Remote control, timing system
- Optional oxygen nebulization and Oxygen density monitor
- Low power consumption, 0.3KW/h.
- Environmental Protective, without harmful byproducts
-
Oxygen Concentrator AM-ZH-A51
Product introduction:
The Oxygen Concentrator produces concentrated oxygen from room air for delivery to a patient requiring low flow oxygen therapy. The oxygen from the air is concentrated using a molecular sieve and a pressure swing adsorption process. Oxygen Concentrators are used for oxygen provision in healthcare applications, in the hospitals or at home, especially where liquid or pressurized oxygen is too dangerous or inconvenient, such as in homes or in portable clinics.
The basic structure of all models is the same. Each model of the Oxygen Concentrators consists principally of an oxygen concentrator unit, a flow meter, an oxygen purity sensor and optionally a humidification bottle. Figure 1 gives the structure of the device.
