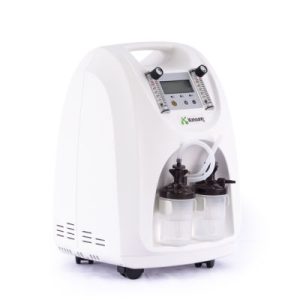

Oxygen Concentrator AM-ACN-5D

Oxygen Concentrator AM-ACN-5D

Working Principles

AC series of medical oxygen concentrator adopts the current world’s advanced transformation absorption (PSA) principle. It separates and filter the oxygen and nitrogen under common temperature and pressure, then obtain the medical oxygen. It is consistent with the pharmaceutical industry standards (YY 0298-1998).

Pure physical manner of making oxygen,without any additives,no disposables,pollution-free, fresh and natural.


  1. It adopts PSA principle to obtain the oxygen by pure physical manner. It can continuously produce oxygen in an efficient and safe manner.
  2. France imported molecule sift helps produce pure oxygen.
  3. High and low voltage alarming system
  4. LED time counting system
  5. Power off alarming system
  6. Remote control, timing system
  7. Optional oxygen nebulization and Oxygen density monitor
  8. Low power consumption, 0.3KW/h.
  9. Environmental Protective, without harmful byproducts



Technical Specifications

Max flow 5L/min
Oxygen Density ≥90% (V/V)
Running Noise ≤52dB (A)
Dimension 350*340*475mm
Power consumption ≤350W
Continuous Working Time 10,000 hours
Accessory 1)      nebulizing Kit (optional)

2)      an oxygen cannula(180cm)

3)      a humidifier

4)      anti-dust sponge (2pcs)

5)      filter sponge(2pcs)

6)      humidifier connection tube (1pc,10cm)


Suitable for oxygen therapy or oxygen healthcare in family or care room in hospital.


Box size: 400*400*530mm (1pc)

N.W.: 13.5KGS

G.W.: 15.5KGS

Q’TY: 280/580/725 pcs for 20’GP/40’GP/40’HC
