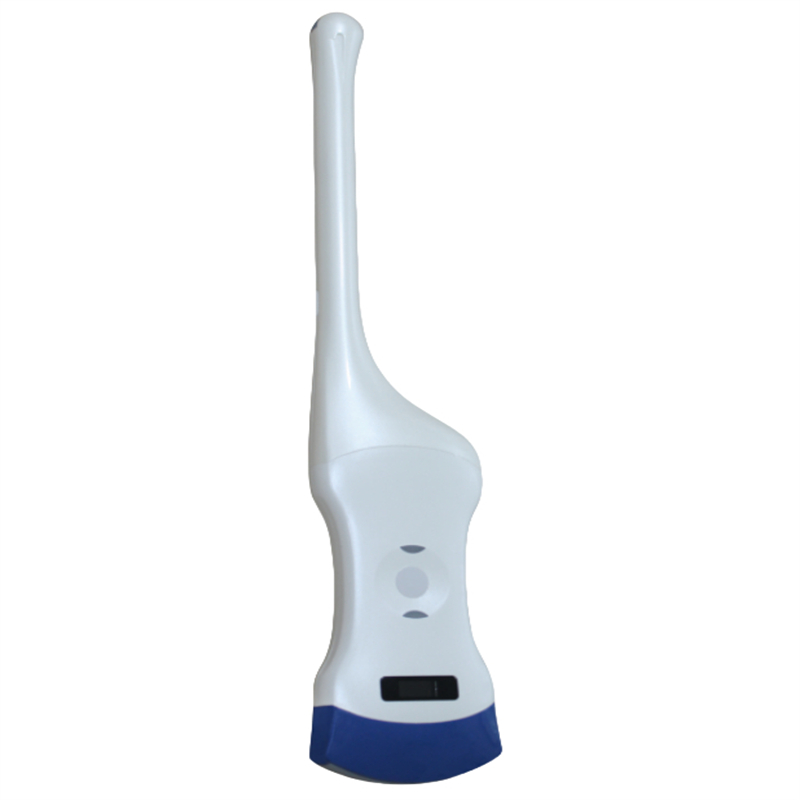

Double Head Probe Type Wireless Ultrasound Scanner AM-2P
- Home
- Double Head Probe Type Wireless Ultrasound Scanner AM-2P
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Features
1. Small and Compact size, easy to carry.
2. Wireless type without probe cable, working freely.
3. Waterproof design, convenient for sterilization.
4. Remote diagnosis convenience, capable for images transfer to doctors.
Technical Specifications
PARAMETER
SPECIFICATION
Probe Type
Consist by two of Convex, Microconvex, Linear, Small Linear, Transvaginal
Scanning mode
Electronic array
Display mode
B, B/M, color doppler version with B+Color, B+PDI, B+PW
Probe element
128/192
Channel of RF circuit board
32/64
Probe frequency and scan depth, head radius/width, scan angle(convex)
Convex head 3.5MHz/5MHz, 90/160/220/305mm, 60mm, 60° Convex head with phased array(cardiac) scan mode: 3.5MHz/5MHz, 90/160/220/305mm, 40mm, 90° Linear head 7.5MHz/10MHz, 20/40/60/100mm, 40mm Small Linear head 10MHz/14MHz, 20/30/40/55mm, 25mm Microconvex head 3.5MHz/5MHz, 90/130/160/200mm, 20mm, 88° Transvaginal head 6.5MHz/8MHz, 40/60/80/100mm, 13mm, 149°
Image Adjust
BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF
Cineplay
auto and manual, frames can set as 100/200/500/1000
Puncture assist function
the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement.
Measure
Length, Area, Angle, heart rate, Obstetrics
Image save
jpg, avi and DICOM format
Image frame rate
18 frames/second
Battery working time
2.5 hours(according to whether keep scan)
Battery charge
by USB charge or wireless charge, take 2 hours
Dimension
L156×W60×H20mm(if with transvaginal head length is 270mm)
Weight
250g
Wifi type
802.11g/20MHz/5G/450Mbps
Working system
Apple iOS and Android, Windows
