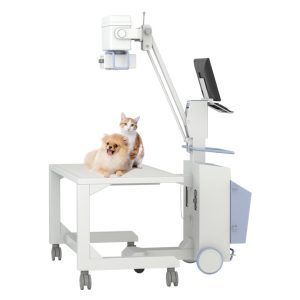

Veterinary X-ray Machine AM-VET-100

Veterinary X-ray Machine AM-VET-100

  1. Purpose

The equipment is a combined high frequency X-ray video camera that can be conveniently moved to wards, ICU, operating rooms and so on for taking film.

  1. Features
  2. Structure designed based on anthropotomy, with beautiful appearance, and easy to operate.
  3. Two-button adjustment by kV and mAs, display by LCD and memory by parameters after power failure.
  4. With a high-quality knockdown X-ray generator to reduce irradiation, which is much safer to environment and operator.
  5. With 50 preset exposure programs, and can be modified and stored by the user for convenient operation.
  6. It is featured with protection for shortage of high voltage, over-flowing of tube current and output over-loading as well as indication for failure.
  7. With a symmetrical beam applicator to adjust the X-ray field and a collimator lamp to locate the filed to ensure accurate radiograph.
Compare
Category:

Description

III. Technical Specification

PARAMETER SPECIFICATION
Power Output 2.5KW
Frequency 25KHz
X-ray Tube Fixed anode
Focus 2.6mm
Tube Voltage 40~100KV (interval 1KV)
Tube Current 40~49KV 50mA 1~160 mAs
50~59KV 42mA 1~160 mAs
60~69KV 36mA 1~140 mAs
70~79KV 31mA 1~125 mAs
80~89KV 28mA 1~100 mAs
90~100KV 25mA 1~80 mAs
mAs 1.0~160 mAs (45 steps)
Power Supply 220VĀ±10% 50Hz inner-resistanceā‰¤1.0
X
