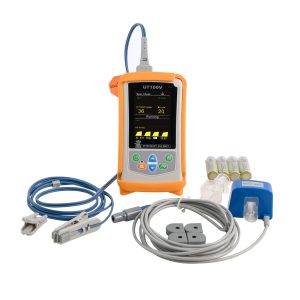

Veterinary Handheld Capnograph Monitor AM-VET-100VC
Features
- Color LCD Display and Screen Rotation
- Automatic power-off function for power saving
- Two selectable working modes
- Long battery life-up 20 hours on 4"AA"Alkaline or Ni-MH rechargeable batteries
- Powerful data storage capacity
- Patient information management
- Data can be transferred to PC for storage review and printing
- Audible and visible alarm capability
Standard Package
Main unit/Veterinary SpO2 sensor /Airway adapters/Adapter cable
Optional Accessories
Carry bag,AC adapter (charger),Protective cover (stand),Data analysis software CD
Technical Specifications
PARAMETER
SPECIFICATION
SpO2
SpO2
0-100%
Accuracy
70-100%
Resolution
1%
Range
30-400 (bpm)
Accuracy
±2bpm
Resolution
1bpm
ETCO2
Range
0-150mmHg
Accuracy
±2mmHg@<5.0% CO2
Resolution
0.1mmHg
PR
Range
1%
Accuracy
±1bpm
Resolution
1bpm
Electrical
AC power requirements
100-240VAC, 47-63Hz
Power consumption
20VA
Batteries
Type
Alkaline/Ni-Mh Batteries
Operating Time
>20 Hours
Charge time
<6 Hours
Environment
Operating Temperature
0-45°C
Storage Temperature
-20-60°C
Operating Humidity
30-95%
Operating Altitude
-500-5000m
Physical Characterisitics
Dimensions
13.5cmx7.5cmx2.8cm
Weight
13.5cmx7.5cmx2.8cm
Weight
13.5cmx7.5cmx2.8cm
Weight
258g with batteries
Alarms
Audible and visual alarms for high and low saturation (0-100%), pulse rate (25-250bmp, sensor off, full storage and low battery)
Alarm Volume
85dB
