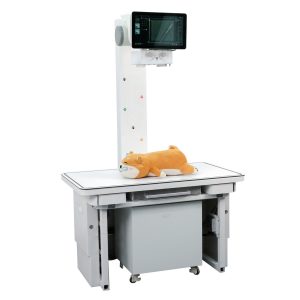

VET Digital Radiography System AM-S01
Features
1. 2 square meters of installation space
With integrated design of radiography table, this equipment requires only 2 square meters
of installation space, which provides a solution to scarce installation space in most pet
hospitals by saving the available space.
| V- S01 | Content | Technical Specifications | Quantity |
| 1 | Flat panel detector | 1 | |
| 1.1 | Scintillator | Csl & a-Si | |
| 1.2 | Pixel Pitch | 139μm | |
| 1.3 | Number of Pixels | 2912×2912 | |
| 1.4 | Active Area | 17"×17"inches ( 427×427mm) | |
| 2 | Software | 1 | |
| 3 | High voltage generator | 1 | |
| 3.1 | Output Power | 32kW | |
| 3.2 | Maximum kV | 150kV | |
| 3.3 | Maximum mA | 400mA | |
| 4 | X-ray tube | 1 | |
| 4.1 | Nominal Focal Spot Value | 1.0/2.0mm | |
| 4.2 | Anode Heat Content | 140kHU | |
| 5 | Beam-defining clipper | 1 | |
| 6 | Table | 1 | |
| 6.1 | Board of Table | Fixed, HPL | |
| 7 | Displayer | 23.8 inches | 1 |
| 8 | Host | CPU≥2G, Internal Storage≥4G, Hard Disk≥1T | 1 |
| 9 | High voltage Cable | 75kV/5m | 2 |
| 10 | Foot exposure switch | 1 | |
| 11 | Hand Exposure switch | 1 |
