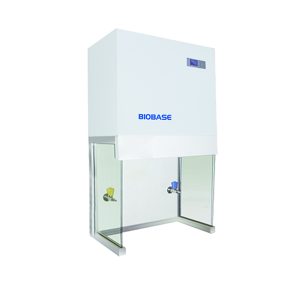

Vertical Laminar Flow Cabinet AM-ALF-V680/800/DDC/SDC

– Main Body: Cold-rolled steel with anti-bacteria powder coating
– Work Table: 304 stainless steel (except model ALF-V680)
– Electric height adjustable base stand

Compare



Technical Parameters

MODEL ALF-V680 ALF-V800 ALF-DDC ALF-SDC
External Size

(W*D*H), mm

680*410*1160 802*650*1550 1040*615*1770 1440*615*1770
Internal Size

(W*D*H), mm

630*375*615 800*530*540  940*540*545 1340*540*545
Work Surface

Height

 / 660mm 750mm 750mm
Display LED Display
Airflow Velocity Average of 0.3~0.5m/s, air speed adjustable.
Material Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Table: 304 stainless steel (except model ALF-V680)
Pre-filter Polyester fiber, washable
HEPA Filter 99.999% efficiency at 0.3um
Noise <65dB
Front Window  / Manual,5mm toughened glass, anti-UV
Max Opening  / 490mm 310mm 310mm
Illuminating Lamp Fluorescent lamp, 8W*1 LED lamp

8W*1

LED lamp

12W*1

LED lamp

16W*1

UV Lamp 15W*1 18W*1 18W*1 30W*1
Emission of 253.7 nanometers
Consumption 160W 350W 350W 600W
Standard Accessory Fluorescent lamp

UV lamp*2

Water & gas tap

LED lamp

UV lamp*2

Base stand

LED lamp

UV lamp*2

Base stand

LED lamp

UV lamp*2

Base stand

Optional Accessory / Electric height adjustable base stand
Caster /  Universal wheel with leveling feet
Power Supply AC220V±10%, 50/60 Hz; 110V±10%, 60HZ
Gross Weight 50kg 116kg 131kg 174kg
Package Size (W*D*H) mm 840*560*1380 960*800*1800 1190*890*1360 1600*890*1360
