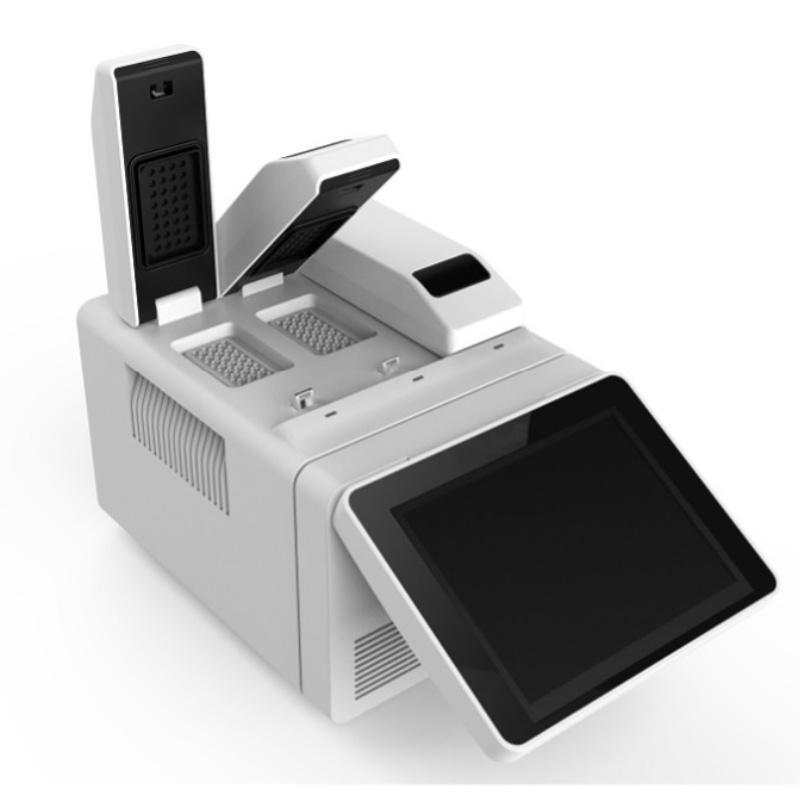

Touch Screen Multi-block Thermal Cycler AM-T30
- Home
- Touch Screen Multi-block Thermal Cycler AM-T30
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
| Model | T30 |
| Sample block | 3*32 wells*0.2ml Easily change TalentGene series without tools |
| Optional tube | 0.2 ml PCR tubes, 8 stripes |
| Peltier Technology | New generation peltier technology, allows 1,000,000 cycles |
| Screen | 10” color touchscreen with adjustable angle, graphically displays protocols execution editing and execution status |
| Language | English |
| Communications | 2 USB and LAN |
Temperature
| Lock temperature range | 0℃~105℃ |
| Max. Heating Rate | 7.5℃/s |
| Max. Cooling Rate | 6℃/s |
| Temperature uniformity | ≤±0.2℃ (at 90℃) |
| Temperature accuracy | ≤±0.2℃ (at 90℃) |
| Screen resolution | 0.1℃ |
| Adjustable ramp rate | Yes |
| Temperature control mode | Sim Tube and Block |
Gradient
| Gradient Accuracy | ≤±0.1℃ (at 90℃) |
| Column Uniformity | ≤±0.2℃ (at 90℃) |
| Gradient Strip | 30℃~105℃ |
| Temperature. Differential Range | 1 25 ~ ℃ |
| Gradient capacity | Each individual block has 8 gradient temperatures |
Heating cover
| Lid temperature range | 30℃~112℃ |
| Open method | Innovative TOP-OPEN technology, with uniform overpressure of the heating lid |
| Automatic shutdown | Yes, the lid will automatically close when the block temperature is below the set temperature. |
Software
| Max. number of programs | Max. 15,000 programs on board, unlimited protocol storage with USB flash drive |
| Max. Step | 30 steps, multiple nesting cycles available |
| Max. Cycle | 100 typical cycles (multiple nesting allows 10,000 cycles) |
| Time increment/decrement | 1-120 sec, available for long PCR |
| Increase/decrease in temperature | 0.1-10.0℃, available for PCR Touchdown |
| Auto pause/auto restart | Yes |
| Multi-user login | Password-based authentication protects personal PCR protocols |
| Keep at 4℃ | Yes, incubation below room temperature allows overnight storage of PCR results. |
| Program Assistant | Yes, the template PCR protocol allows you to create a new one with just a few clicks. |
| Running report | Yes, please provide a full review after protocol execution. |
| PC connection | Yes |
Other Resources
| Energy | Global switching power supply: 100V~240V, 50–60Hz Max 900W |
| Dimension（L×W×H） | 375 × 270 × 277mm |
| Net weight | 13kgs |
