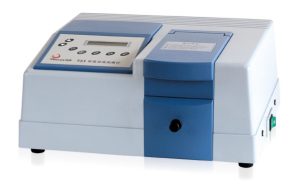

Spectrophotometer AM-723

Spectrophotometer AM-723

Product Description

  1. Adopting128 * 64 digit dot matrix liquid crystal display, can directly display standard curve and test data that can be stored by the host, and with an optional printer;
  2. USB data output interface;
  3. Can establish standard curve directly, and can conduct related test with the standard curve, continuously test and store 200 sets of data, and can store 100 standard curves;
  4. Unique optical system, 1200 pieces/ mm grating and imported receiver to ensure its sound performance;
  5. Automatic wavelength calibration and setting;
  6. Large sample rooms that can accommodate 5-100mm cuvettes of all kinds;
  7. Membrane keys, simple and convenient to operate;



Technical Parameters

Wavelength range 320 ‐1100 nm
Wavelength accuracy +/‐ 1nm
Spectral bandwidth 4 nm
Wavelength repeatability 0.5 nm
Stray light <= 0,1%T @360 nm
Photometric accuracy 0.5%T
Photometric repeatability 0.2%T
Stability +/‐ 0.002 A/h @500 nm
Working T, A, C
Display range 0‐200%T, ‐0.3‐3A
Display 128*64 LCD
Zeroing Automatic
Weight 12 kg
Software support None
