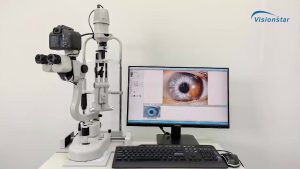

Slit lamp AME-5DII
- Home
- Slit lamp AME-5DII
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Description
-lmage transferred from digital camera to software immediately and directly
-High resolution digital imaging.
-Digital capture from multiple sources
-Comprehensive patient data and imaging.
-Vast online storage hight level of data security.
-lmage processing, such as measurement, note, merge edit, magnify, bright adjust, color adjust and so on.
-Video and images Real-time display,convenient for patient education and teaching
purposes.
Technical Specifications
PARAMETER
SPECIFICATION
Microscope Type
Parallel Stereoscope
Magnification
Five steps magnifications
Eye piece
12.5x
Total Magnification and Diameter of Visual Field(mm)
6x, 10x, 16x, 25x, 40x
Adjustable Range of Pupil Distance(mm)
55~85
Adjustable Diopter
>士7D
Slit Width(mm)
0-14 adjustable
0-14
adjustable
Slit Angle
0~180°
Slit Inclination
5°, 10°, 15°, 20°
Light Spot Diameter (mm)
Φ10,Φ14, Φ8, Φ5, Φ3, Φ2, Φ0.2
Filters
Heat Absorption, Grey, Red Free, Cobalt Blue
Illumination Bulb
12V / 30W or 12V/50W halogen bulb
Fixed view lamp
Red LED
Background light
Halogen lamp
Voltage/frequency
AC220V,50Hz or AC110V, 60Hz
Power
80VA
Camera
Canon EOS
Adaptor
Integrated beam splitter & camera adaptor
Joystick
With shutter button
Computer
Usually Lenovo
Software
image process software
Optional Accessories: Instrument table, Applanation tonometer, Teaching tube, CCD adaptor, printer
