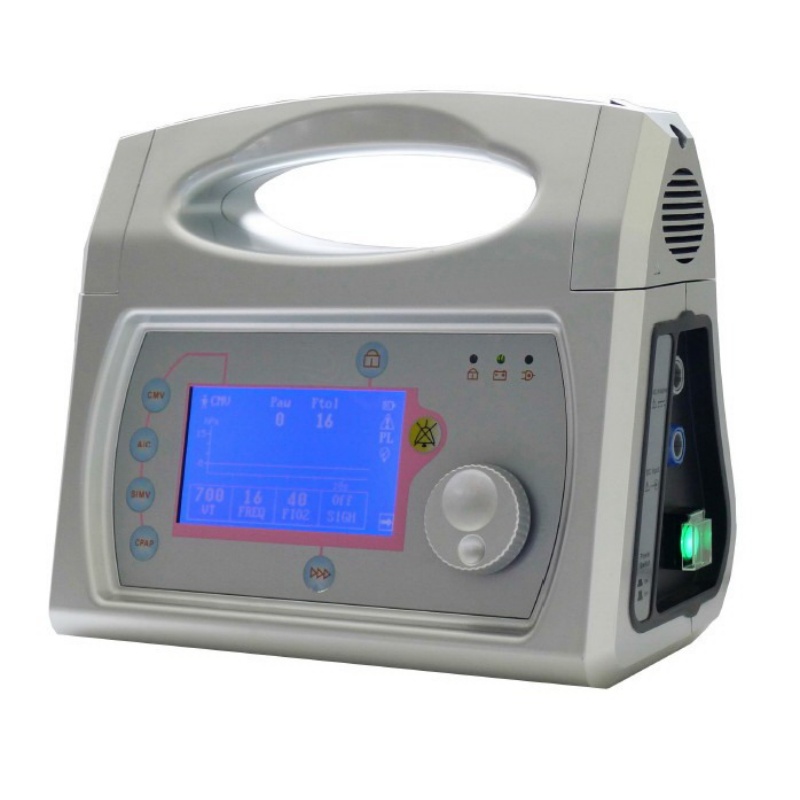

Portable Medical Ventilator AM-AR-100D
- Home
- Portable Medical Ventilator AM-AR-100D
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Introduction
-Used for first aid, ambulance, emergency and hospital patient transportation, this medical ventilator can be used for both pediatric and adult patients.
-One button operation, it is simple to use with digital control and precise settings, and contains a special self-test function to ensure patient safety.
-This medical ventilator consists of ventilators, 2L aluminum oxygen cylinder, breathing circuit, carrying set, special ambulance bracket and pressure reducer for large oxygen cylinder, etc.
Technical specifications
| SETTING | FEATURES | |||
| Modes | C, A/C, SIMV, SIGH, CPAP, PEEP | |||
| Tidal volume | Category | 50–2000 ml | Noticed | Precise digital adjustable |
| Respiratory rate | 1 to 100 bpm | |||
| O 2 % | 45-100% | |||
| Trigger level | -20–0hpa | |||
| Peak pressure | 0–60 hPa | |||
| PEEP | 0–20 hPa | |||
| SIGH | 1 to 10 times per 100 breaths |
MONITOR
| Affichage des données sur grand écran LCD | Volume courant, O2%, soupir, fréquence respiratoire, débit, pression (déclencheur synchronisé, voie aérienne de pointe, CPAP, PEEP) |
| Affichage de la forme d'onde du temps de pression des voies respiratoires | |
| Affichage des données d'alarme | Alarme de pression haute / basse des voies respiratoires, absence d'alarme de gaz / alimentation, erreur de paramètre |
| Autre affichage | Verrouillage, indicateur de charge, situation inspiratoire / expiratoire, alimentation CC / CA |
| SPECIAL SELF-TEST | |
| AR-100D portable medical ventilator complies with the latest national standards, such as YY0600.3-2007, ISO9001, ISO13485, China FDA, etc. | |
| Circuit connection prompt | Remind the operator to connect the breathing circuit correctly to enter the use state |
| Audible alarm test | Test the audible alarm to ensure reliable use. |
| Gas pressure test | Test the gas pressure, remind the operator to ensure gas pressure supply. |
| Internal battery capacity test | Test the internal battery capacity |
| Circuit leakage test | Test circuit leakage, to prevent the circuit from falling or leaking and unexpected situation occurring |
| ALARMS |
| High airway pressure |
| Low airway pressure |
| Low battery voltage alarm |
| Low gas pressure |
| Parameter error |
| High frequency alarm |
