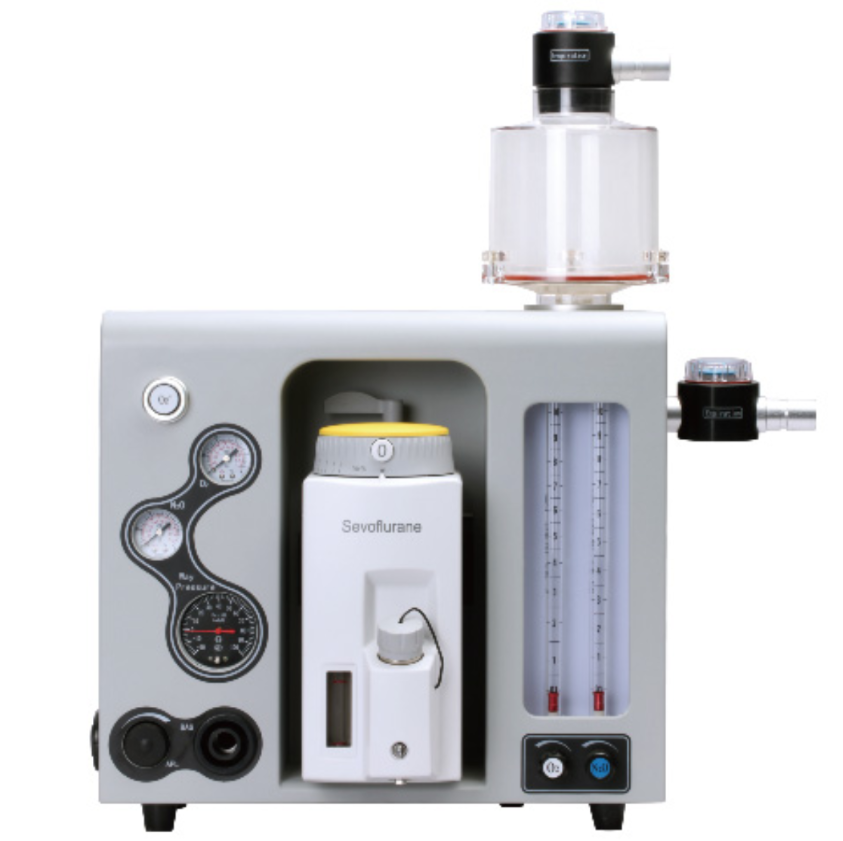

This is the first manual, light-weight, compact, portable Anesthesia Machine specifically

designed for surgical locations where space or access is limited, such as:

• Office Based Anesthesia (OBA)
• Dental anesthesia
• Missionary off-shore anesthesia
• Remote locations in hospitals outside O.R.
• Disaster scenes and mass casualty incidents
• Front-line military hospitals
• Shipboard, aircraft

Any location where size, mobility and portability are important.

1. Working mode: Manual
2. Patient scope: from Pediatric to Adult (3kgs over)
3. Tidal volume: 20-1500ml
4. Working pressure: O2:0.3—0.4Mpa, N2O:0.3—0.4Mpa
5. Flowmeters: 2 tube 2 gas flowmeter; O2 range: 0.1-10L/min, N2O range: 0.1-10L/min.
6. O2 and N2O linkage device (ORC system), FiO2≥25%
7. APL valve adjustment range: 0.5-6.0Kpa
8. O2 Flush: 30-60L/min

- Main Unit

- One Vaporizer; Agent type: Halothane, Isoflurane, Enflurane and Sevoflurane.

- Standard Accessories of breathing tubes for connecting and Mask etc.

- In-built Co2 absorber Canister with capacity of 2kg.

① Anesthesia Ventilator TH-1A

Special Feature:

- Independent Anesthesia Ventilator, with IPPV and Manual mode

- With necessary monitoring and alarm function,

to make sure the operation safety

- Gas supply: O2, or Air

- With international connector, can be matched with

various brands of anesthesia machines

Specification:

- Respiration mode: IPPV, SIMV, Manual

- Respiratory frequency: 1 to 65BPM

- Display: 5.5´ SNT screen

- I:E ratio: 8:1~1:8

- Waveform: P-t, V-t

- Monitor Parameters: Tidal volume; Minute Ventilation; Peak

- Tidal volume: 50ml~1600ml

② Anesthesia Ventilator TH-1

Special Feature:

- Independent Anesthesia Ventilator, with IPPV and Manual mode

- With necessary monitoring and alarm function,

to make sure the operation safety

- Gas supply: O2, or Air

- With international connector, can be matched with various

brands of anesthesia machines

Specification:

- Control method: Gas driving electronic controlled

- Breath frequency: 1~90BPM

- Display: High light LED display

- I:E ratio: 4:1~1:6

- Respiration mode: IPPV, Manual

- Monitor Parameters: Tidal volume; Minute Ventilation; Breath Frequency; Airway Pressure

- Tidal volume: 50~1500ml
