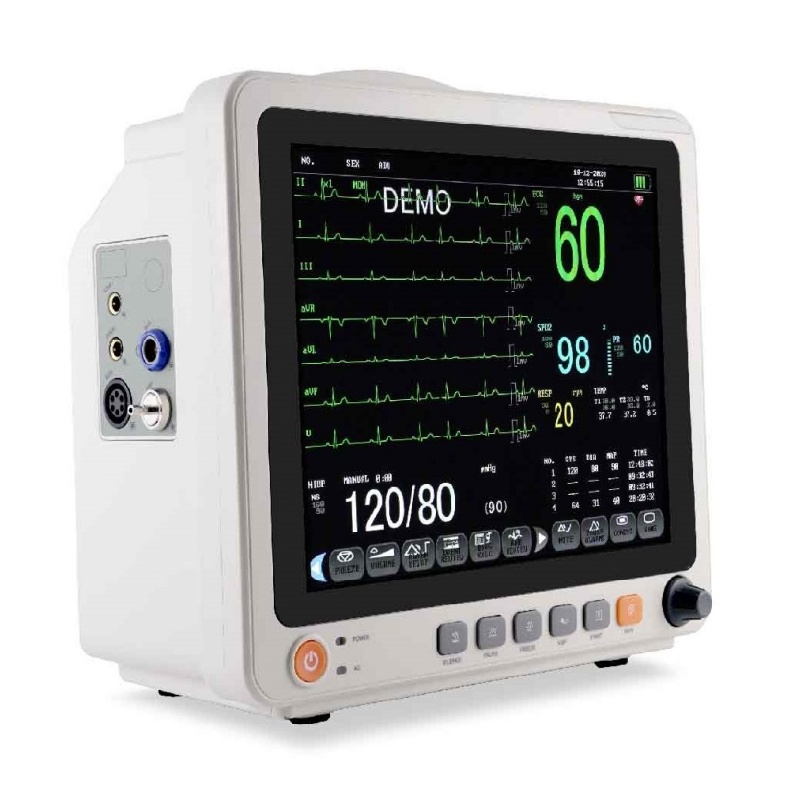

Patient Monitor AM-9000E
- Home
- Patient Monitor AM-9000E
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Feature
- 1-inch Six Standard parameters: ECG, RESP, NIBP, SPO2, 2_TEMP, PR/HR
- 13 Type Arrhythmic Analysis, Multi-Lead ECG Waveforms Display in Phase, Real time S_T segment analysis, pacemaker detection Drug calculation and titratiotable;
- Efficient resistance to interference of defibrillator and electrosurgical cautery;
- SPO2 can testing for 0.2% Weak;
- RA-LL impedance Respiration;
- Trend Coexist Display;
- OxyCRG DyNamic View Display;
- Options of Internal Recorder, IBP, EtCO2, Central Monitoring System, Touch Screen, VGA, NeonateSPO2
- Built-in rechargeable battery 4400mAh;
- 1″ high resolution color TFT LCD display;
- Large volume of tabular and graphic trends information storage and easy to recall;
- Anti- defibrillator; Optional Anti-ESU
Technical Specifications
PARAMETER
SPECIFICATION
ECG
Lead Mode: 5 Leads (R, L, F, N, C or RA, LA, LL, RL, V) Lead selection: I, II, III, avR, avL, avF, V, Waveform: 2 ch Lead mode: 3 Leads (R, L, F or RA, LA, LL) Lead selection: I, II, III, Waveform: 1 ch Gain: ‘2.5mm/mV, ‘5.0mm/mV, ‘10mm/mV, ‘20mm/mV, auto
Heart Rate and Alarm
Range -Adult: 15 ~ 300 bpm -Neo/Ped: 15 ~ 350 bpm Accuracy: ± 1% or ± 1bpm, which great Resolution: 1 bpm Sensitivity: >200 (uV P-P) Differential Input Impedance: > 5 MΩ CMRR -Monitor: > 105 dB -Operation: > 105 dB -Diagnosis: > 85 dB Electrode offset potential: ±300mV Leakage Current: <10uA Baseline Recovery: 2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC Alarm: Available Review: Available
Respiration
Method: Impedance between R-F (RA-LL) Differential Input Impedance: >2.5 MΩ Measuring Impedance Range: 0.3 ~ 5.0Ω Base line Impedance Range: 0 ~ 2.5 KΩ Bandwidth: 0.3 ~ 2.5 Hz Resp. Measuring Range: -Adult: 0 ~ 120 rpm -Neo/Ped: 0 ~ 150 rpm Resp. Alarm Range: -High alarm range limit: 8~120 rpm -Low alarm range limit: 6~120 rpm Resolution: 1 rpm Accuracy: ±2 rpm Apnea Alarm: 10 ~ 40 S
NIBP
Method: Oscillometric Mode: Manual, Auto, STAT Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min) Measuring Period in STAT Mode: 5 Min Pulse Rate Range: 40 ~ 240 bpm Alarm Type: SYS, DIA, MEAN Measuring and alarm range Adult Mode -SYS: 40 ~ 270 mmHg -DIA: 10 ~ 215 mmHg -MEAN: 20 ~ 235 mmHg Pediatric Mode -SYS: 40 ~ 200 mmHg -DIA: 10 ~ 150 mmHg -MEAN: 20 ~ 165 mmHg Neonatal Mode -SYS: 40 ~ 135 mmHg -DIA: 10 ~ 100 mmHg -MEAN: 20 ~ 110 mmHg Resolution Pressure: 1mmHg Accuracy Pressure Maximum Mean error: ±5mmHg Maximum Standard deviation: ±8mmHg Overpressure Protection -Adult Mode: 297±3 mmHg -Pediatric Mode: 240±3 mmHg -Neonatal Mode: 147±3 mmHg
SpO2
Measuring Range: 0 ~ 100 % Alarm Range: 0 ~ 100 % Resolution: 1 % Accuracy: 70% ~ 100% ±2 %; 0% ~ 69% unspecified Actualization interval: about 1 Sec. Alarm Delay: 10 Sec. Pulse Rate Measuring and Alarm Range: 20~300bpm Resolution: 1bpm Accuracy: ±2bpm
Temperature
Channel: 2 Measuring and Alarm Range: 0 ~ 50°C Resolution: 0.1°C Accuracy: ±0.1°C Actualization interval: about 1 Sec. Average Time Constant:<10 Sec.
IBP (optional)
Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2 Measuring and alarm range -ART: 0 ~ 300 mmHg -PA: -6 ~ 120 mmHg -CVP/RAP/LAP/ICP: -10 ~ 40 mmHg -P1/P2: -10 ~ 300 mmHg Press Sensor Sensitivity: 5uV/V/mmHg Impedance: 300-3000Ω Resolution: 1 mmHg Accuracy: ±2% or ±1mmHg, which great Actualization interval: about 1 Sec
Standard Packing List
5-lead ECG cable (including RESP) Adult finger SpO2 sensor Adult NIBP cuff NIBP extension tube TEMP sensor AC power adaptor ECG electrodes Operation instruction
Optional Function
Internal Recorder, IBP, EtCO2, Central Monitoring System, Touch Screen, Neonate SPO2
