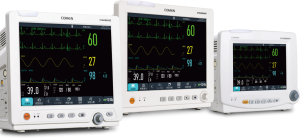

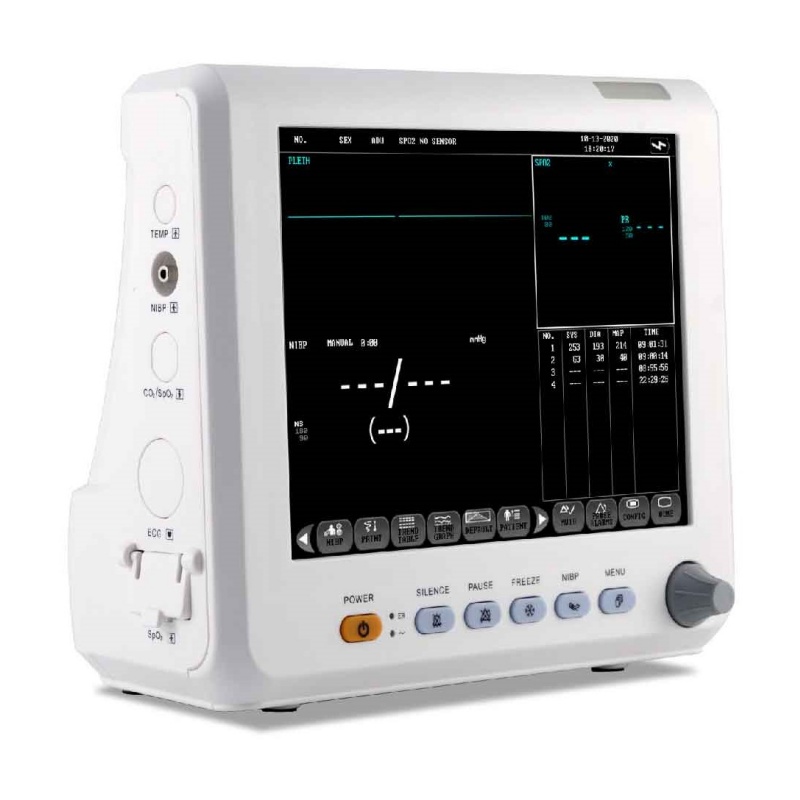

Patient Monitor AM-8000E
- Home
- Patient Monitor AM-8000E
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Features
- 8-inch, two kinds of configuration for choice: 3 Para, or 6 Para
4 Para: NIBP, SPO2, PR, TEMP
6 Para: ECG, RESP, NIBP, SPO2, 2_TEMP, PR/HR
- 13 Type Arrhythmic Analysis, Multi_Lead ECG Waveforms Display in Phase, Real time S_T segment analysis, pacemaker detection Drug calculation and titratiotable;
- Efficient resistance to interference of defibrillator and electrosurgical cautery;
- SPO2 can testing for 0.2% Weak;
- RA-LL impedance Respiration;
- Trend Coexist Display;
- OxyCRG DyNamic View Display;
- Options of Central Monitoring System;
- Built-in rechargeable battery 2200mAh;
- 8″ high resolution color TFT LCD display;
- Large volume of tabular and graphic trends information storage and easy to recall;
- Anti- defibrillator; Optional Anti-ESU
Technical Specifications
PARAMETER
SPECIFICATION
ECG
Lead Mode: 5 Leads (R, L, F, N, C or RA, LA, LL, RL, V) Lead selection: I, II, III, avR, avL, avF, V, Waveform: 2 ch Lead mode: 3 Leads (R, L, F or RA, LA, LL) Lead selection: I, II, III, Waveform: 1 ch Gain: ‘2.5mm/mV, ‘5.0mm/mV, ‘10mm/mV, ‘20mm/mV, auto
Heart Rate and Alarm
Range Adult: 15 ~ 300 bpm Neo/Ped: 15 ~ 350 bpm Accuracy: ± 1% or ± 1bpm, which great Resolution: 1 bpm Sensitivity: > 200 (uV P-P) Differential Input Impedance: > 5 MΩ CMRR -Monitor: > 105 dB -Operation: > 105 dB -Diagnosis: > 85 dB Electrode offset potential: ±300mV Leakage Current: < 10 uA Baseline Recovery: 2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC Alarm: Available Review: Available
Respiration
Method: Impedance between R-F (RA-LL) Differential Input Impedance: >2.5 MΩ Measuring Impedance Range: 0.3~5.0Ω Base line Impedance Range: 0 – 2.5 KΩ Bandwidth: 0.3 ~ 2.5 Hz Resp. Measuring Range: -Adult: 0 ~ 120 rpm -Neo/Ped: 0 ~ 150 rpm Resp. Alarm Range: -High alarm range limit: 8~120 rpm -Low alarm range limit: 6~120 rpm Resolution: 1 rpm Accuracy: ±2 rpm Apnea Alarm: 10 ~ 40 S
NIBP
Method: Oscillometric Mode: Manual, Auto, STAT Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min) Measuring Period in STAT Mode: 5 Min Pulse Rate Range: 40 ~ 240 bpm Alarm Type: SYS, DIA, MEAN Measuring and alarm range Adult Mode -SYS: 40 ~ 270 mmHg -DIA: 10 ~ 215 mmHg -MEAN: 20 ~ 235 mmHg Pediatric Mode -SYS: 40 ~ 200 mmHg -DIA: 10 ~ 150 mmHg -MEAN: 20 ~ 165 mmHg Neonatal Mode -SYS: 40 ~ 135 mmHg -DIA: 10 ~ 100 mmHg -MEAN: 20 ~ 110 mmHg Resolution Pressure: 1mmHg Accuracy Pressure Maximum Mean error: ±5mmHg Maximum Standard deviation: ±8mmHg Overpressure Protection -Adult Mode: 297±3 mmHg -Pediatric Mode: 240±3 mmHg -Neonatal Mode: 147±3 mmHg
SpO2
Measuring Range: 0 ~ 100 % Alarm Range: 0 ~ 100 % Resolution: 1 % Accuracy: 70% ~ 100% ±2 %; 0% ~ 69% unspecified Actualization interval: about 1 Sec. Alarm Delay: 10 Sec. Pulse Rate Measuring and Alarm Range: 20~300bpm Resolution: 1bpm Accuracy: ±2bpm
Temperature
Channel: 2 Measuring and Alarm Range: 0 ~ 50 °C Resolution: 0.1°C Accuracy: ±0.1°C Actualization interval: about 1 Sec. Average Time Constant:<10 Sec.
Standard Packing List(3 Para)
Adult finger SpO2 sensor Adult NIBP cuff NIBP extension tube AC power adaptor Operation instruction
6 Para
5-lead ECG cable (including RESP) Adult finger SpO2 sensor Adult NIBP cuff NIBP extension tube TEMP sensor AC power adaptor ECG electrodes Operation instruction
Optional Function
Central Monitoring System
