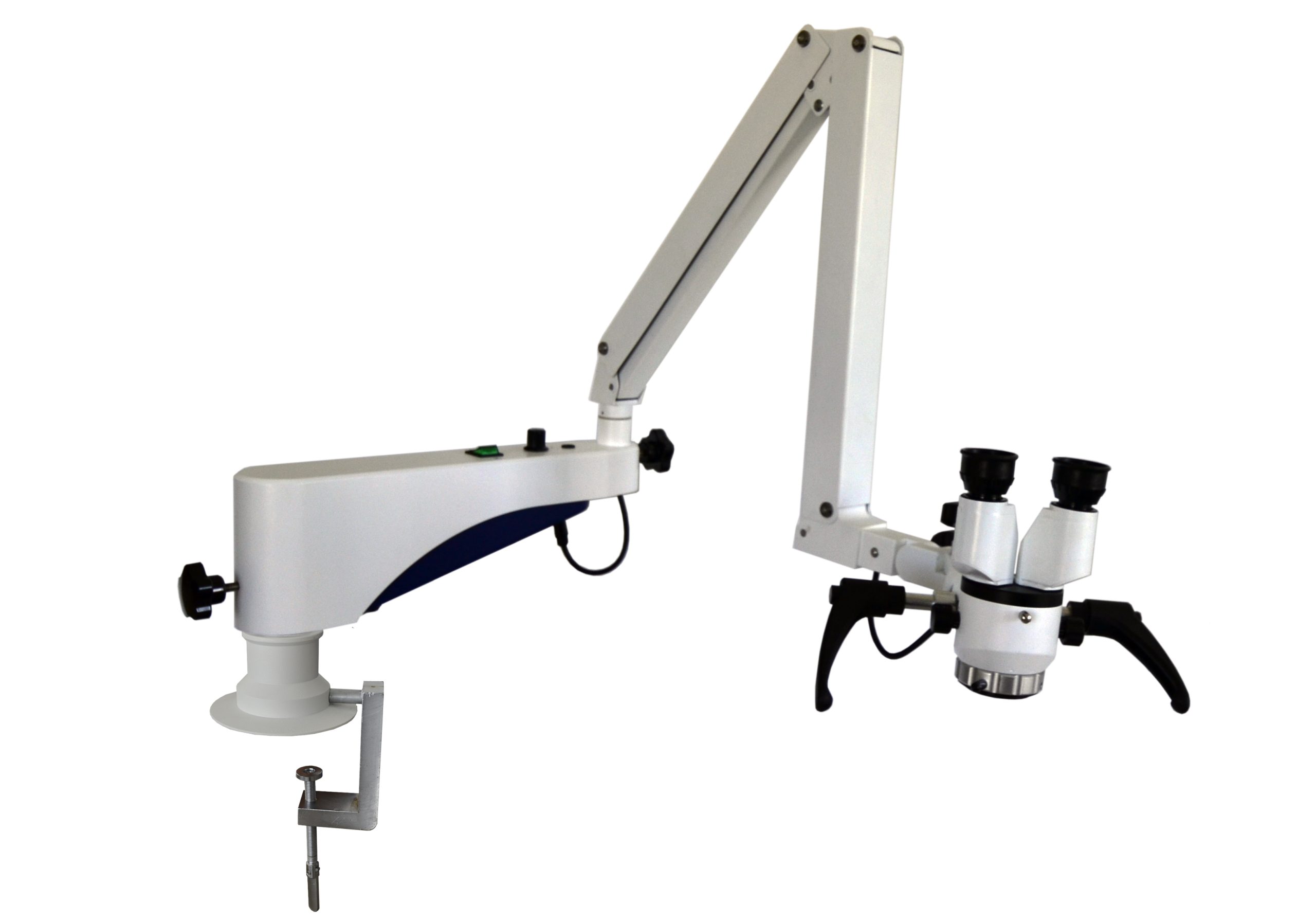

Operating Microscope AM-AOM-103

Operating Microscope AM-AOM-103





AOM Series Operating Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology, and surgery.

AOM-103 is mainly used for micro-operating in ear-nose-throat surgery.

Technical Specifications

Observation Angle Straight
Magnification of Observation 6X
Interpapillary Distance 50mm-80mm
Diopter ±5D
Focal Length of Objective F=200mm and F=300mm two objectives
Magnification Changer 3-step: 0.6X, 1X, 1.6X
Total Magnification 3X, 5X, 8X, 4.7X, 7.5X, 12X
Linear Field 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm
Fine Focusing Distance 10mm
Illumination Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx
Lamp 10W LED lamp
Filter Build-in green and yellow filter
Balancing arm 2-part arm with universal joints
With table mount clamp
Power supply input AC100V-240V, 50-60HZ
Power supply adapter DC12V3A, 36W
Optional Accessories Beam splitter, Video camera adapter, Demonstrator, Camera (U3CMOS03100KPA, WUCAM0720PA, FHD2100, HD200), Monitor (S24R352FHC), Objective F=250mm & F=400mm, Wall mount bracket
