Description
Introduction

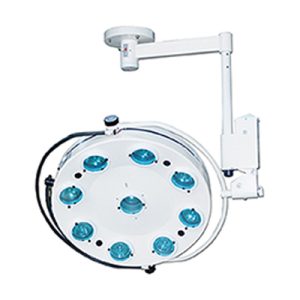

AM-L500-III shadowless operating lamp is suitable for the requirements of various operating conditions and it is ideal operating lighting equipment for modern operating rooms and clean operating rooms.
Features
–Â The no welding titanium alloy main arm is adopted, so that the appearance is aesthetic
and the rotation is more flexible and convenient.
– The removable handle sheath can be disinfected at the high temperature of 135℃.
– The depolished panel made of imported material makes the light rays softer.
– The imported switch power supply is adopted to control the voltage, making the work
voltage permanently stable.
– The special radiation filter reducing the heat to the minimum level.
– The multi-flake retroreflector made of imported aluminum sheet has the features of no
coating film and never fading.
– Imported lamp receptacle, Tungsten halogen bulbs of international brand are adopted with
the average service more than 1500 hours.
– Light adjustment circuit adopts CPU control, enabling increase or decrease of illumination
and boasting brightness memory.
– One lamp holder with two bulbs enables automatic operation of the standby bulb in 1/2
second when the main bulb malfunctions, and it has indicators for the damage of main or
standby bulb.
Technical Specifications
| PARAMETER | SPECIFICATION |
| Illumination | 60,000-120,000LX (at 1m distance) |
| Color Rendering Index | 100≥Ra≥85 |
| Facula Diameter | φ100~φ280mm |
| Depth of Light Beam | ≥700mm |
| Brightness Level Adjustment | CPU Light-dimmer |
| The Value of the Total Irradiance (service range for temperature rise≤10℃) | ≤6mW/m²lx |
| Total Irradiance (temperature rise on the head of patient under surgical operation≤2℃) | ≤600W/m² |
| Shift of Major and Stand by Lamps | Automatic |
| Color Temperature | 4500K±500K |
| Diameter of Lamp Holder | 500mm |
| Mains Voltage | AC220V±20%, 50Hz |
| Bulb Voltage | AC24V Bulb Power |
| Input Power | 200VA |
| Height for Installation | 270-320cm |
| Battery is Optional | |
