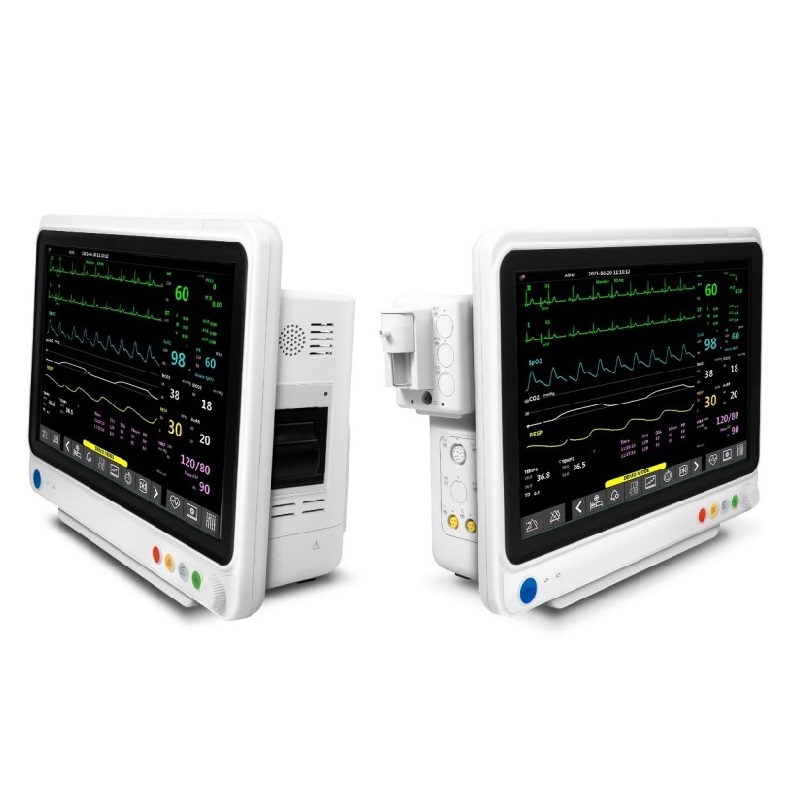

Modular Patient Monitor AM-800D
- Home
- Modular Patient Monitor AM-800D
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
The multi-parameter monitor is composed of host, battery, display screen, parameter module, parameter module plug-in box and accessories (pulse saturation probe, body temperature probe, ECG lead, blood pressure cuff, sampling tube). This monitor supports hot plugging for Plug-In Module, where they can be plugged without turning off the monitor.
Standard Para: lead ECG, RESP, SpO2, 2-TEMP, NIBP, PR/HR
Optional Para: 2-IBP, EtCO2, touch screen, recorder, 12-lead ECG, cardiac output, anesthesia depth EEG, CMS
-Suitable for adults, children, and newborns.
-12.1/15.6 inches color LCD screen with optional touch screen and rotator knob.
-Upgradable module is interchangeable (plug and play type).
-Capable to visualize 6 or more waveform.
-Support color coding for different waveform.
-28 ST segment analysis with ST trend with continuous display of ST value on screen.
-Multiple screen layout to view big font size in numeric and waveform.
-Trending facilities for up to 360 hours of both graphical & numerical along with event review facility for all parameters and full waveform disclosure facility.
-Different visual alarm with color coding and audible alarms for various parameters with three levels of volume adjustment.
-Support HL7 protocol to access the central workstation
-Energy-saving, low-power design, extending battery life
-Configure noise reduction fan to ensure a quieter and cleaner environment Arrhythmia detection and analysis in various leads.
-5200mAh built-in battery backup of 4 hours
-Dimension: 30cm*15cm*30cm for ARI-800D, 38*15*30cm for ARI-800D+
