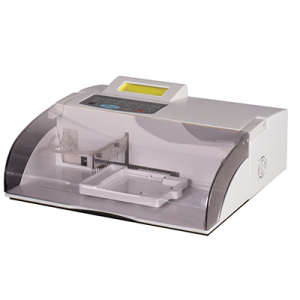

Microplate Washer AM-AR-2000A

Microplate Washer AM-AR-2000A


  1. Interchangeable manifolds for 8- and 12-well strips
  2. One or more strips of ELISA Plate washing keyboard choice directly
  3. Minimal residual volume (<1µL/well)
  4. Dispense precision CV<2%
  5. Detachable ELISA Plate pallet, convenient for the pallet clearing and sterilization
  6. Cleaning head 5-locations location adjusted,
  7. Shaking or soak time programmed.
  8. Automatic waste and lotion and distilled water liquid warning




Technical Specifications

Micro-plate Types 48 / 96-well U-/V- / Flat-bottom plates or strips
Residual ≤ 1μl / well
Dispense volume 50μl-950μl, adjustable
Washing Cycles 1-99, optional
Washing Mode 1-12, rows and ranks select-able
Soaking Time 0-999s, adjustable
Shaking Time 0-999s, adjustable
Display Large LCD
Channel 1 channels for washing liquid, 1 channel for waste liquid
Memory Up to 100 programs can be stored
Interface RS232
Power Supply 220\110VAC ± 10%, 50\60Hz
Temperature 5°C – 30°C wet ≤ 90%
Dimension/N.W 430mm (L) × 380mm (W) × 120mm (H)/11KGS
