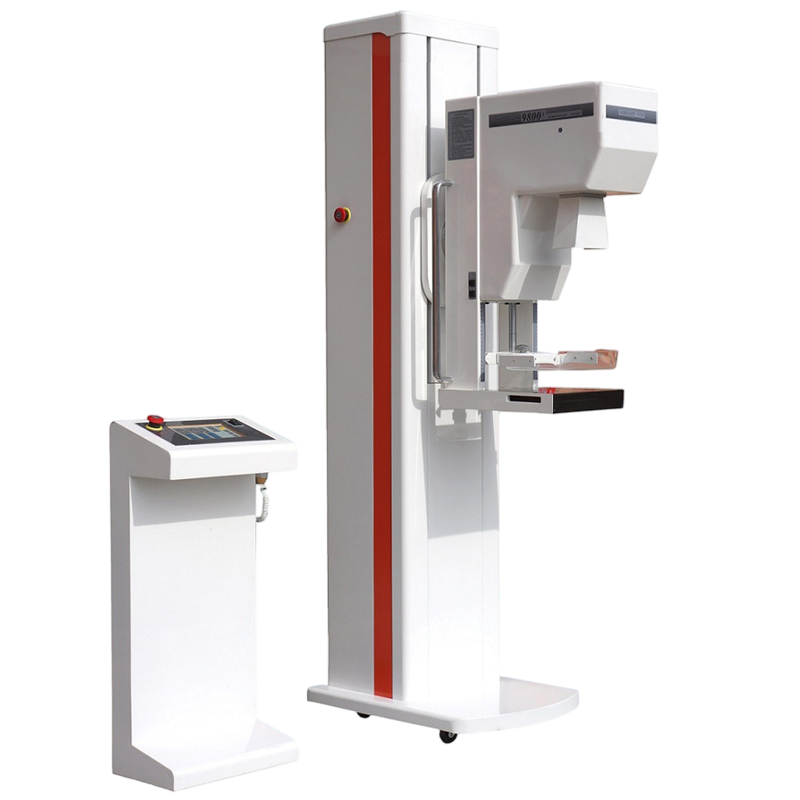

Mammography System AM-9800B

Mammography System AM-9800B

Product Description
1 High-definition and colorful display
2 Multiple function and easy operation
3 Less Radiation , no-invasive, long life-time
4 Mouse action, convenient operation



Main Parameters

Two different X-ray tubes to choose:

— Hangzhou LR01 tube from China

— IAE C339V tube from Italy

  1. X-ray Generator

Complete solid-state high-frequency high-voltage generator.

Generator Type: High Frequency Inverter 80kHz

Input Power: Single phase 220VAC, 50/60Hz

Radiographic Ratings: Large Focal Point 20-35kV/10-510mAs

                    Small Focal Point 20-35kV/10-100mAs

Power Rating: 6kW

  1. X-ray Tube

1)     Hangzhou LR01 tube from China

Focal Spot Size: Dual Focus 0.2 / 0.4mm

Target Material:Molybdenum (Mo)

Port Material:Beryllium (Be)

Anode Heat Storage: 100KJ

Anode Cooling:Air cooling

Filtration: Mo(0.03mm),Al(0.5mm)

2)  IAE C339V tube from Italy

Focal Spot Size: Dual Focus 0.1/0.3mm

Target Material: Molybdenum (Mo)

Port Material: Beryllium (Be)

Anode Heat Storage: 210kJ (300kHU)

Anode Cooling: Air cooling

Filtration: Mo(0.03mm), Al(0.5mm)

  1. Radiographic Stand

C-ARM: Vertical Movement: 580mm

Rotations Deg:+175°~-180°

SID: 650mm

  1. Cassette Image Receptor

Bucky Device: 18*24cm Bucky drive mechanism

Grid Ratio: 5:1, 30 Line/cm

  1. Radiographic Stand

C-ARM Vertical Movement: 580mm

C-ARM Rotation: +175°~-180°

SID: 650mm

  1. Line Voltage

220Vac@25A, Single phase
