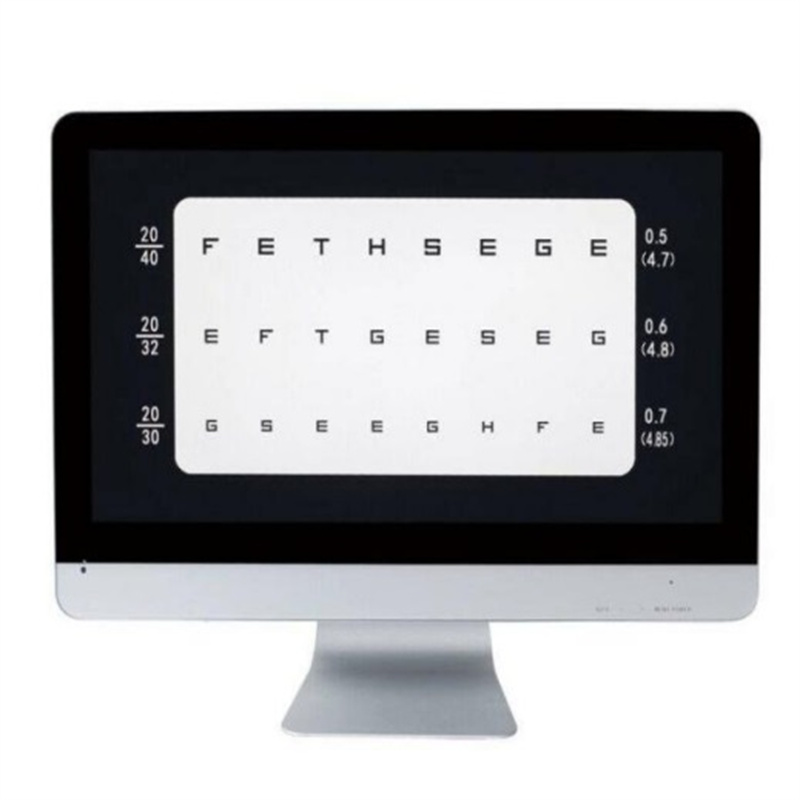

LED Vision Tester AM-LY-220A


  1. The LED Vision Tester can detect eyesight, visual associated myopia, hyperopia, color blindness, astigmatism and other tests.
  2. Test Distance from 1 meter to 6 meters.
  3. Screen Size: 22
  4. Packing Dimension: 58.5x 18x 50cm
  5. G.W.: 6.5kg

Functional characteristics

  1. Super thin and light design, high definition scheme, the professional digital picture processing technology, fast switching, easy to operate.
  2. Measuring accuracy with the distance from 2.0m to 6.5m and the smallest step 0.1m.
  3. Offering single display function, which includes eight rows and three lines charts.
  4. Offering fully charts, which includes the total forty-five charts: International C word, lnternational E word, Children.
  5. Figures , Astigmatism, Binocular balance and so on.
  6. Sitting type installation & Wall-hung type installation both available, which enable the installation convenient and maintenance easy.
  7. High resolution LCD screen and small dot pitch (0.294mm) adopted, which ensure the clear image seen

Packing list

Description Quantity (Piece)
Main body 1
Remote control in 220V 1
Hung kit 1
The wall mounting screws 4
Power wire 1
Operation manual 1


Technical Specifications

Power supply AC100V to 240V, 50/60Hz
Standard power Approx. 25W
Standby power Approx. 2W
Dot pitch of monitor 0.294mm
Type of monitor TFT,
Size of monitor 19″ // 21.5″
Ratio of monitor 16:10 // 16:9
DPl of monitor 1440 x 900/60Hz, 1920 × 1080/60Hz
Visual size 376 x 301mm
Visual angle H:170 / V:160
Color 16.7M
Max brightness 300CD / M2
Maximum contrast 2000:1
Corresponding signal time 5ms
External dimensions 412×435×195mm
Unit weight 5.0Kg
Measuring distance 2M to 6.5M
Recording methods of vision Decimal & Imperial fraction
Control distance not less than 8M for maximum
