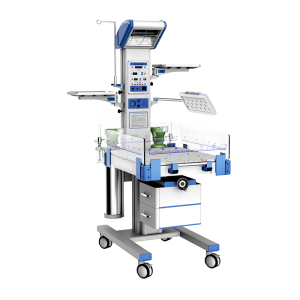

Infant Warmer AM-AW-1C

Infant Warmer AM-AW-1C

Compare

Description

Features

Three modes: pre-warm, manual and automatic

Set temperature and skin temperature display separately

Anti-explosion micro crystal quartz for radiation source

Self – testing function, various failure alarms by audible and visual

APGAR timer to record therapy time

Convenient X-ray cassette tray under infant mattress

Heater head can be adjusted ± 90° horizontally

Inclination of infant bed is adjustable

LED observe light angle is adjustable

Transparent protector can be folded down, with two infusion seals

RS232 connector

Built-in low-pressure aspirator

LED phototherapy unit

PVC infant resuscitator

Special design inclined heater head is more convenience for X-ray test

Carbon steel heater for more effectivity

Bigger infant bed

Oxygen supply system

Specifications

Power supply: AC110/220V, 60/50Hz

Power input: 1100VA

Operating Conditions

-Environment temperature: 18℃~30℃

-Environment relative humidity: 30%~75%

-Atmospheric Pressure: 700~1060hpa

-Environment air velocity of flow: <0.3m/s

Skin Temperature control range: 32℃~38℃

Skin temperature control accuracy: ≤0.5℃

Skin temperature sensor accuracy: ±0.3℃

Mattress temperature uniformity: <2℃

Infant Bed tilt angle: ±12°

Warm-up time(from 25℃): <30min

Heater head horizontal: ±90°

LED observation light: 3W

Distance from heater to mattress: 80cm

Mattress size: 78cm*64cm

Timer range: 0~99h59min

LED phototherapy light 36cm: 620-2800μw/c㎡

LED phototherapy light 50cm: 400-1620μw/c㎡

Low pressure aspirator

-Max vacuum adjustable: ≥-25kpa(-188mmHg)

-Storage bottle: 1000mL

Oxygen cylinder: 6L*2

Oxygen flow meter: 0-10L/min

Standard configuration

Main body (including the Radiant source, Control system, Infant bed, Bracket), X-ray cassette, Observe light, I.V. pole, Skin temperature sensor, Tray, Mattress, Transparent protector, Castors. Drawers, LED phototherapy unit, Low pressure aspirator, RS-232

Optional Functions

Built-in Infant Resuscitator
Electric Elevator
