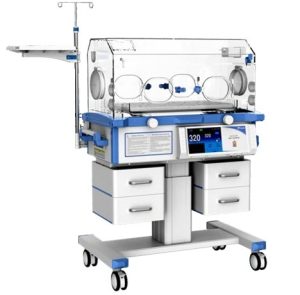

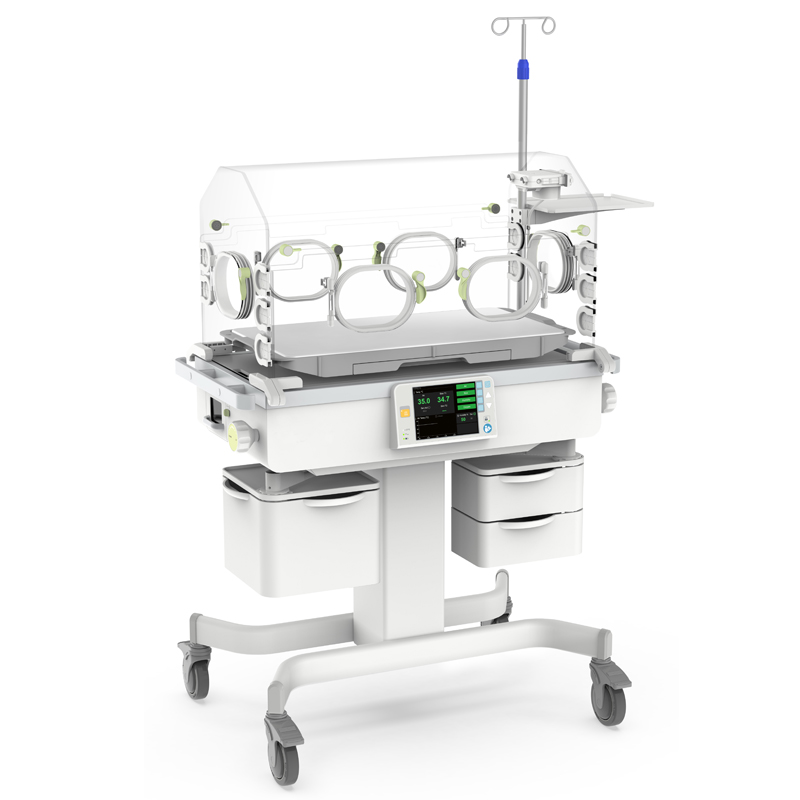

Infant Incubator AM-AI-3

Infant Incubator AM-AI-3





  1. 8.4″ LCD display
  2. Temperature monitoring
  3. Temperature servo control
  4. Humidity Monitoring
  5. Humidity Servo Control
  6. Air temperature and body temperature contorl two modes
  7. Mattress tilt ±12 °
  8. Ergonomic designed handle with perfect height
  9. Trend for 2, 4, 8, 12, 24 hours and up to 7 days
  10. Front and rear double-walls and air curtain
  11. Drawers Large (28.0cm x 24.7cm x 36.0cm)
  12. Drawers Small (28.0cm x 11.3cm x 36.0cm) *2
  13. Auxiliary Power Output*3
  14. Backup battery to keep air flow and alarm after power failure for more than 30 mins

Technical Specifications


Air flow velocity across mattress < 10 cm/sec

Temperature rise time at 22°C (72°F) ambient < 20min (From 22℃, 50%RH, to 35℃)

Temperature variability < 0.5℃

Temperature overshoot < 0.5℃ maximum

Temperature uniformity with a level mattress < 0.8℃

Operating noise level in hood ≤45dBa

Carbon Dioxide (CO2) Level <0.5%


Tubing access ports: 10

Access door size: 18cm x 13cm

Mattress to hood height: 48.0mm

Soft bed mattress size: 73.6cm x38.6cm x1.8cm

Temperature control modes: Skin and air temperature control mode

Air mode control temperature range: 20℃-37℃

Air mode control override temperature range: 37℃-39℃

Air mode control accuracy ≤±1.0℃

Skin mode control temperature range: 34℃-37℃

Skin mode control override temperature range: 37℃-38℃

Skin temperature accuracy: ±0.3℃

Dual-skin temperature monitoring: Yes

Servo Humidity

Humidity control range: 30%-95% RH

Humidity control operating time without refilling: 24 hours

Humidity control reservoir capacity: 1500ml

Humidity display accuracy: ±5%RH

Humidity control accuracy: ±5% RH

Servo Oxygen (Optional)

Oxygen control range: 21 % to 65%

Oxygen display accuracy of full scale: ±2%

Oxygen control accuracy (100% calibration): ±3%

Oxygen control accuracy (21% calibration): ±5%

Oxygen display resolution: 1%

Scale (Optional)

Weight range: 300g to 8kg

Weight display resolution: 1g

Weight accuracy: ±10g

Operating Environment: 20℃ to 30℃

Humidity: 10 to 95% RH

Air Velocity: Up to 0.3m/sec
