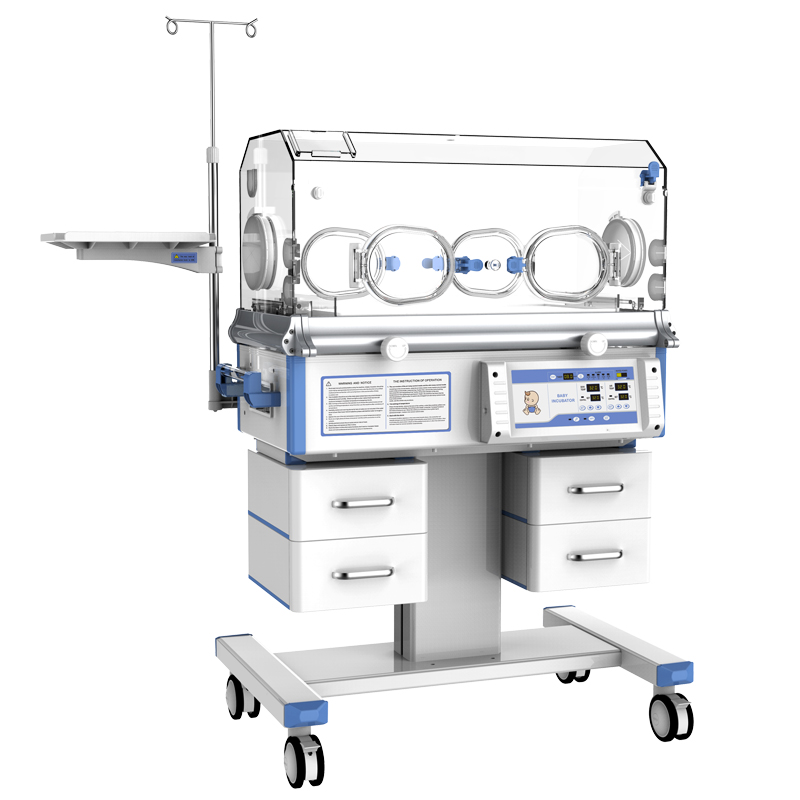

Infant Incubator AM-AI-2
- Home
- Infant Incubator AM-AI-2
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Feature s
- Microprocessor based servo-controlled temperature system
- Control modes: Air mode and baby skin mode
- Humidity is adjustable continuously
- Set temperature, air temperature, baby skin temperature, timer and heating power are displayed separately by LED
- Self - testing function, various failure alarms by audible and visual
- >37℃ temperature set function
- Triple protection for over temperature with separate cut off device, more safety system
- The inclination of infant bed is adjustable
- Single wall hood, 4 operating windows and 2 iris ports
- Independent locking device for front door
- RS232 connector
- Oxygen inlet
- Cabinet with four drawers
Specifications
Performance
Power supply: AC110/220V, 60/50Hz
Power input: 650VA
Air temperature control range: 25℃～37℃ 37.1℃～38℃
Skin temperature control range: 32℃～37℃ 37.1℃～38℃
Skin temperature sensor accuracy:±0.3℃
Temperature fluctuation:±0.5℃
Uniformity of mattress temperature: ≤0.8℃
Warm-up time(from25℃): ＜30min
Internal noise level: ＜50dB(A)
Infant bed tilt angle: ±10°
Mattress size: 65cm(L)*37cm(W)
Trough capacity: 1200mL
Air filter: 0.5μm
Operating condition
Environment temperature: 20℃～30℃
Environment relative humidity: 30％～75％
Environment air velocity of flow: ＜0.3m/s
Optional Functions
X ray cassette Tray
Electric Elevator
LED phototherapy unit AL-3D, AL-10D
Double wall hood
