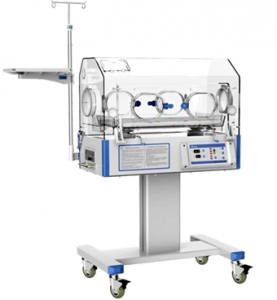

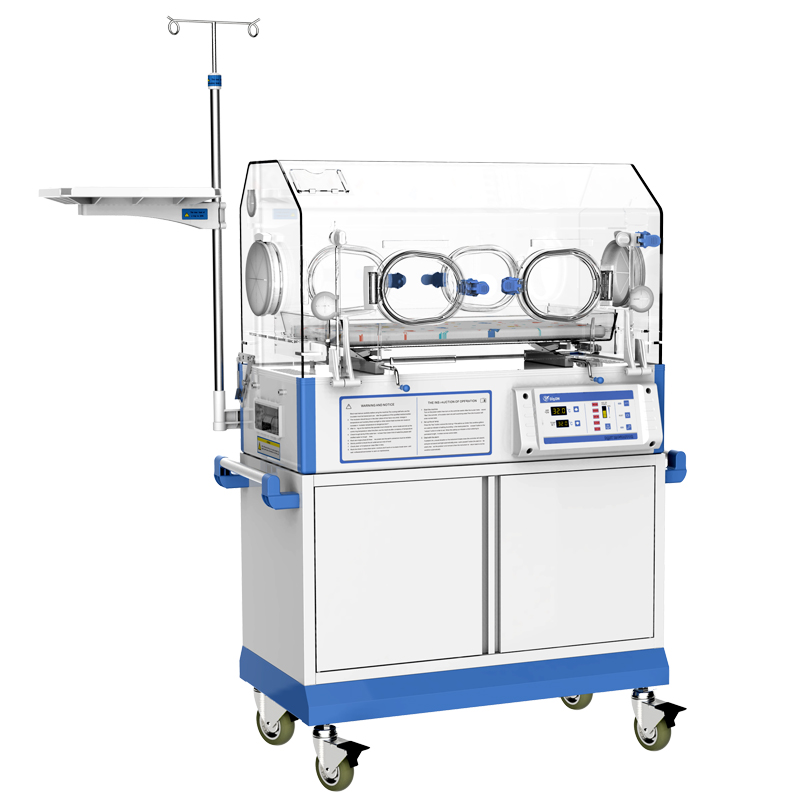

Infant Incubator AM-AI-1B

Infant Incubator AM-AI-1B





  1. Microprocessor based servo controlled temperature system
  2. Control mode: Air mode
  3. Humidity is adjustable in two grades
  4. Set temperature, air temperature, heating power are displayed separately by LED
  5. Self – testing function, various failure alarms by audible and visual
  6. >37℃ temperature set function
  7. Triple protection for over temperature with separate cut off device, more safety system
  8. The inclination of infant bed is adjustable
  9. Single wall hood, 4 operating windows and 2 iris ports
  10. RS232 connector -Bracket with stand
  11. Cupboard
  12. Oxygen inlet
  13. Humidity is adjustable continuously

Technical Specifications


Power supply: AC110/220V, 60/50Hz

Power input: 650VA

Air temperature control range: 25℃~37℃ 37.1℃~38℃

Temperature fluctuation: ±0.5℃

Uniformity of mattress temperature: ≤0.8℃

Warm-up time(from 25℃): <30min

Internal noise level: <50dB(A)

Infant bed tilt angle: ±10°

Mattress size: 65cm(L)*37cm(W)

Trough capacity: 1200mL

Air filter: 0.5μm

Operating condition

Environment temperature: 20℃~30℃

Environment relative humidity: 30%~75%

Environment air velocity of flow:<0.3m/s

Optional Functions

LED phototherapy unit AL-3D, AL-10D
