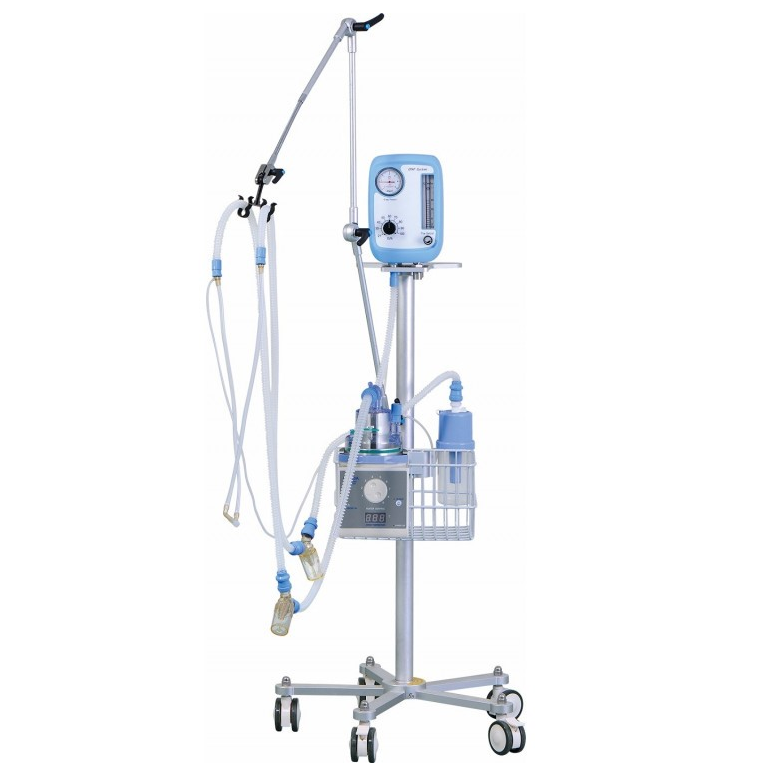

Infant CPAP System

AR-200D

Infant CPAP System

Application

The CPAP System makes a good performance in Neonatal Intensive Care Units (NICU) and other departments. our expertise in ventilation is based on rich 23-year history of developing CPAP solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.

Trust Points

-Simplicity: easy to use, easy to move with 4 wheels.

-Choice: adapt the equipment to your patients and procedures freely

-Designed and manufactured by Superstar Medical with over 23 years’ experience in this area.

-Flexible configurations to suit your needs.

-International standard and advanced technology suitable for all baby patient around the world.

-Compact interface gives you better operating experience.

Features

-Integration breathing circuit design, ensure easy operating and keep tidy.

-Real time pressure-time graphics and high precision O2 concentration detection function included.

-Built-in air and oxygen blender ensure stable oxygen concentration.

-Reliable CPAP control valve and pressure monitoring system improve CPAP adjustment precision.

Safety

-Two wheels with brake, ensure stable operating.

-Pressure meter and flow meter ensure accurate adjusting of parameters.

Technical Specifications

PARAMETER

SPECIFICATION

Inspiratory oxygen concentration
Regulating range: 21%~100%
Monitoring range: 21%~100%
CPAP
Regulating range: 0~10cmH2O
Monitoring range: 0~10cmH2O
Continuous flow
Regulating range: 1.5 ~15L/min
Monitoring range: 1.5 ~15L/min
Gas source
Oxygen, Compressed air
Pressure
280kPa~600kPa
Nominal working pressure
350kPa
Display
No
Alarm and safety protection
No
Back-up power
No
Packing Size (2 wooden cases)
Main Engine: L700*W710*H380mm, GW: 35KG; NW: 17.7KG
Frame: L160*W195*H1100mm, GW: 6.7KG; NW: 2KG
