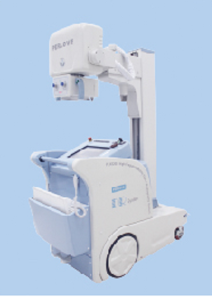

High Frequency Mobile Digital Radiography System AM-AR-5200

High Frequency Mobile Digital Radiography System AM-AR-5200

  1. Usage

This unit is high frequency combined digital X-ray radiography medical diagnostic equipment, it is used in radiography department, orthopedics, wards, emergency room, operation room, ICU, etc. It can satisfy the requirement of parts of body such as head, limbs, chest, spine, lunmer, stomach.

  1. Basic configuration
  2. High quality combined high frequency high voltage generator
  3. Color graphical touch LCD control system
  4. Panel detector with free movement
  5. High quality IPC
  6. Large size medical LCD display
  7. New type mobile column rack
  8. Symmetric adjustable, wireless ranging rotatable collimator with lamp
  9. Electric assistance drive system
  10. Cable exposure hand brake



III.X-ray generator

  1. 25KW compact x-ray generator;
  2. High frequency of 60Khz;
  3. With high technology to reduce the radiation;
  4. Unique Power supply way
  5. Supers capacitor to supply power in photography and durable life;
  6. Li-Battery to supply power in mechanical movement;
  7. Mechanical movement
  8. The horizon arm can be contracted freely;
  9. The pillar has the electronic up and down movement; and be rotated 360 degree;
  10. X-ray tube is rotary and moves left and right with 90 degree;
  11. Collimator can be rotated left and right with 90 degree;
  12. Comprehensive integration control drive
  13. Software

LCD touch screen operation panel to control the machine conveniently;

VII. Technical parameters

Type Item Spec
High frequency X-ray Max output power 25kW
Main Inverter Frequency 60kHz
X-ray tube Focus Small focus:0.6; Large focus:1.3
Rotation anode speed 3000rpm
Heat capacity 900kJ (1200kHU)
Tube current 200mA
Tube voltage 40-125kV
MAS 0.4-360mAs
Digital image system Digital detecotr Detector Amorphous silicon detector
scintillator cesium iodide
View 14″×17″
Pixel 3000×2400
Max spatial resolution 3.5Lp/mm
Pixel size 144μm
Output gray-scale 16bits
DQE 75%
Workstation Acquisition module Gigabit nets collection
Image processing model Built-in CONTEXTVISION

GOPVIEW XR2 Enhance module, parameters chosen

according to particular part

Image information management Dicom Storage

Dicom Print

Dicom transmission

Physical construction


Distance from floor to focus  Max:193cm; Min:73cm
Distance from focus to pillar  Max:122cm; Min:72cm
X-ray Tube components can rotate

around the telescopic boom axis

Collimator rotate around vertical axis ±90°
Rotation range of pillar 0°~360°
Power supply 220V±10%   50/60Hz
