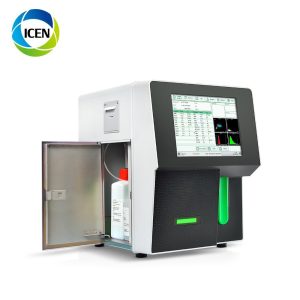

Hematology Analyzer AM-AR-6610
- Home
- Hematology Analyzer AM-AR-6610
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Features
-Throughput 60T/H
-10.4-inch touch screen
-Analysis with 28 parameters + +8 research parameters+2 histograms+4 scattergrams
-Sample volume:20μL
-3 reagents (2 Lyse, 1 Diluent) only
-60,000 sample results with scattergrams and histograms
-Build-in thermal printer,support external printer via U
Technical Specifications
| PARAMETER | SPECIFICATION |
| Principle | Tri-angle laser scattering, flow cytometry for WBC differentiation and count,
Impedance for RBC and PLT count, Cyanide-free method for HGB |
| Parameters | 28 parameters: WBC, LYM%, MON%, NEU%, BAS%, EOS%, LYM#, MON#, NEU#, OS#, BAS#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW-CV, PDW-SD, PCT, P-LCR, P-LCC, NLR, PLR |
| 8 research parameters: LIC%, LIC#, ALY%, ALY#, NRBC%, NRBC#, PLT Clumps%, PLT Clumps# | |
| 2 histograms for RBC and PLT, 4 scattergrams for WBC differential | |
| Throughput | 60 test/Hour |
| Calibration | Manual, auto and fresh blood calibration |
| Quality control | 3 level QC, LJ graph,X-B |
| Sample volume
|
CBC+ DIFF mode: 20μL |
| Prediluted mode: 20μL | |
| Display | 10.4-inch color touch screen (LCD), Resolution: 800×600 |
| Storage | 60,000 sample results with scattergrams and histograms |
| Reagent | 3 Reagents (2 Lyses + 1 Diluent) |
| 1 Probe cleanser for maintenance | |
| Printout | Built-in thermal printer ,support external printer, PCL6 |
| Interface | 4 USB ports, 1 Network port, 1 DB9 serial port HL7 protocol, support
bi-directional LIS connection |
| Maintenance | Sample probe auto-cleaning |
| Blockage clear | High voltage, high pressure flush |
| Temperature | 10°C-30°C |
| Power | AC 100-240V, 50/60±1Hz |
| Dimension | 430(D)×350(W)×430(H)mm |
| Net weight | 28KG |
Performance
| =Parameters | Precision (CV) |
| WBC | ≤ 2.0% (4.0 -15.0×109)/L |
| RBC | ≤ 2.0% (3.5 – 6.0×1012)/L |
| HGB | ≤ 1.5% (110.0 – 180.0g)/L |
| MCV | ≤ 1.0% (70.0 – 120.0) fL |
| PLT | ≤ 4.0% (150.0 – 500.0)×109/L |
| =Parameters | Measurement Range |
| WBC | (0-500)×109/L |
| RBC | (0-8.0)×1012/L |
| HGB | (0-250.0)g/L |
| PLT | (0-5000)×109/L |
