Product Introduction

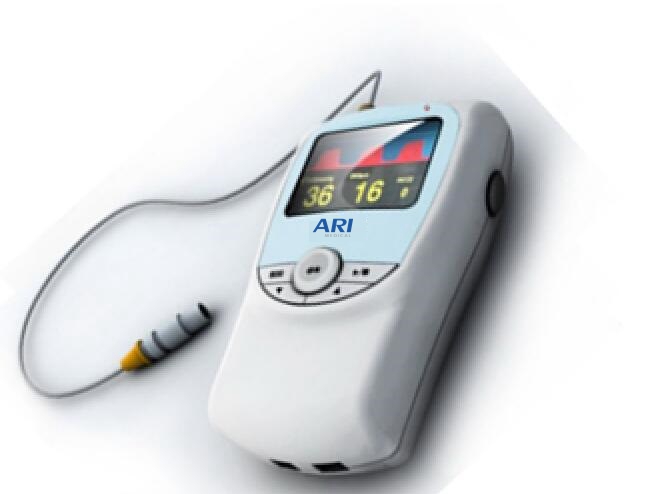

The HC-25 CO2/SpO2 monitor is a compact handful monitor which provides accurate CO2 /SpO2 monitoring. The system's reliable performance, ease of use, flexible design and affordable cost makes it the ideal monitoring solution for adult, pediatric and infant patients; patients undergoing procedural sedation; and short- term monitoring of patients.
HC-25 automatically identifies and quantifies the end-tidal CO2, inspired CO2 and respiration rate. The system uses with a 2.8 inch colorful LCD and its Lithium battery can support 8 hours at most. Additionally, it could save historical data automatically in a SD card and users could review these data through a PC software.
Product Features
- Monitors end-tidal CO2 and inspired CO2 accurately at high respiration rate
- Gas monitor with cutting-edge water filter tube
- Easy to learn, easy to use-simplified menus and dedicated function keys
- Compensation including barometer pressure, oxygen, N20 and anesthetic gas
- 8 hours working time, 24 hours standby time
- 96 hours historical data replay on PC
Technical Specifications
PARAMETER
SPECIFICATION
System
Sample mode Sidestream Principle Non-dispersive Infrared (NDIR) Sample rate 50mL/min
Capnograph
Units mmHg,% Measure range 0-114 mmHg, 0-15% Resolution 0.1 mm Hg 0 to 50 mmHg 0.25 mm Hg 50 to 114 mmHg Accuracy ±2 mmHg 0-40 mmHg ±5% of reading 40-114 mmHg Compensation Barometric Pressure Automatic measuring N2O compensation User Selectable O2 Compensation Set by Host
Respiration Rate
Measure range 2-120 Breath per minute (BPM) Resolution 1 breath/min Accuracy ±1 BPM or ±1%, whichever is greater
Alarms
Indication Audible; Visual Silence Yes; one minutes; two minutes or permanent
Trend
Memory 96-hours historical data saving Display Display on PC monitoring system
Interface&Display
Keys Menu/OK; Up; Down; Cancel; Start/Stop Screen 2.8 inch color LCD Resolution 320 X 240 pixels Sweep speed 6.25 mm/s, 12.5 mm/s Language English; Chinese
Physical Properties
Weight About 1KG Size 15.2 cm (H) X9.2 cm(W) X 4.2 cm(D) 5.98 inch(H) X 3.61 inch(W) X 1.65 cm(D)
Power Requirements
Voltage supply 220 AC; 50 Hz Power consumption About 2W typical Battery A sealed lithium battery Battery life At least 8 hours Recharge time 4 hours
Environmental
Operating temperature 5- 35 °C Storage temperature -5-50 °C Operating humidity 15% - 90%, non-condensing
