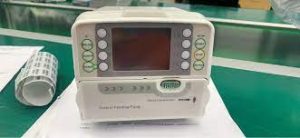

Feeding Pump AM-AFP-500

Category:
Compare



Feature & Function

  1. Compact design: The compact and light weight design saves space and is beneficial during patient transfer
  2. Panel Lock: The panel lock feature helps prevent unauthorized changes of any instrument setting
  3. User-friendly operation: Soft key design, easy to operate; Load directly the last infusion rate and volume limit; Large & colorful LCD display
  4. Versatile functions: 2000 history records; RS232 interface (optional); Real time display; Adjustable buzzer volume (3 levels)

Technical Parameter

PARAMETER SPECIFICATION
Flow rate range 1~400 ml/h
Volume to be infused (VTBI) 0 ~ 9999 ml
Volume Infused (∑) 0 ~36000 ml
Infusion accuracy ±10%
Applicable feeding bag Support a wide variety brands of feeding bag
Bolus rate 400 ml/h
Occlusion pressure 3 adjustable occlusion pressure settings: low, middle and high
Alarms Visual and audible alarms: Door Open, Occlusion, Infusion completion, infusion near over, empty, Start reminder function, Low Battery, Battery depleted, malfunction etc.
Computer Interface RS232
History records 2000 history records
Power supply AC:100~240V,50/60Hz       DC:12V ±1V
Battery Rechargeable lithium polymer battery,7.4V,2100mAh
Can operate for more than 3 hours after fully charged at 25ml/h.
Recharge time 10hs recharging when machine is turned on, 3hs recharging when machine is off.
Power consumption 25VA
Classification Class I, type CF
Water Proof Level IP×3
Mode of operation continuous
Dimensions 145×100×120 mm (length × width × height)
weight ≤1.4kg
Operating conditions Temperature: 5°C ~40°C

Relative humidity: 10~95%

Air pressure: 86~106kPa

Transport conditions Temperature -20~+60°C

Relative humidity: 10~95%

Air pressure:50~106kPa

Storage conditions Temperature: -20°C ~ +45°C

Relative humidity: 10~95%

Air pressure: 50~106kPa
