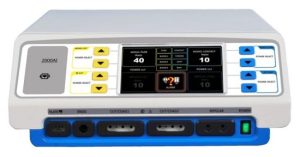

Electrosurgical unit AM-ESU-2000AI (LCD)

Electrosurgical unit AM-ESU-2000AI (LCD)




  1. Max 400W Electrosurgical Generator, with mono-polar and bipolar function.
  2. Nine working modes: pure cut, blend1, blend2, blend3, contact coag, forced coag, soft coag, bipolar coag, bipolar cut.
  3. Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology (under water TUR), oncology, neurosurgery, etc.
  4. Microprocessor controlled, LCD touch screen display. With audible and visual indicators and errors codes during the process of outputting.
  5. Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
  6. Both hand and foot controlled.
  7. Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
  8. The unit always remember the last setting when it turned off.
  9. Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
  10. The ESU unit can be connected with laparoscope and endoscope, etc.
  11. Protection against over-voltage and over-current.
  12. Defibrillation protected.
  13. Convection refrigeration without ventilator.
  14. Mounted on 4 wheels cart (optional).
  15. Meets the requirements of international safety standards EN60601-1 and EN60601-2.

Configuration Sheet

Electrosurgical Pencil          5pcs

Electrosurgical Pad           10pcs

Electrosurgical pad cable      1pcs

Footswitch                   1set

Bipolar Forceps              1pcs

Bipolar forceps cable         1pcs

Technical Specifications

Power 220V±22V, 50Hz±1Hz (110V±11V, 60Hz)
Operating Frequency a) Monopolar: 512KHz; b) Bipolar: 1024KHz
Power Rating 1100VA±10%
Nine Working Modes Monopolar Cut a) Pure cut: 1W~400W (Load 800Ω)

b) Blend1: 1W~300W(Load 800Ω)

c) Blend2: 1W~200W (Load 800Ω)

d) Blend3: 1W~150W (Load 800Ω)

Monopolar Coag e) Spray Coag: 1W~80W (Load 800Ω)

f) Forced Coag: 1W~120W (Load 800Ω)

g) Soft Coag: 1W~120W (Load 800Ω)

Bipolar h) Bipolar Coagulation: 1W~70W (Load 200Ω)

i) Bipolar Cut: 1W~120W (Load 200Ω)

Power Consumption ≤1100VA
