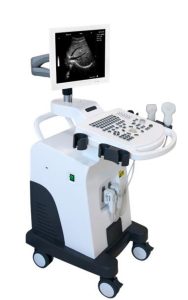

Digital Ultrasound Scanner AM-K2 B/W

Digital Ultrasound Scanner AM-K2 B/W




Description of equipment:

Mainly used in abdomen, Urology, obstetrics and Gynecology, blood vessel, etc..

Functional characteristics:

  1. High definition and multifunctional trolley type full digital ultrasonic diagnostic apparatus
  2. The image is clear and the operation is convenient
  3. 15 inch LCD
  4. Powerful image post-processing functions
  5. The first class digital imaging technology, the image is clearer
  6. DBF all digital beam-forming
  7. DRF real-time dynamic reception of focus by point by point
  8. DRA real-time dynamic sound velocity change
  9. THI tissue harmonic imaging
  10. RDA real-time dynamic aperture imaging
  11. DFS numerical control dynamic frequency scanning
  12. RDF real-time dynamic filtering
  13. A stable and concise operating system
  14. Backlight silicone keyboard, more comfortable and wearable, darkroom use no

longer worry

  1. Intelligent menu, human-computer dialogue is easy and quick
  2. Shows two puncture guide lines, adjustable angles and positions.
  3. The multiple rate shows that the diagnosis is more accurate.
  4. External USB storage, image uploading more convenient
  5. Large volume movie playback, image automatic circulation demonstration
  6. Abundant measurement functions: distance, circumference, area, volume,
  7. obstetric table, heart software package, etc

Performance introduction

Display 15 inch LCD
Scanning mode convex matrix / linear array / micro convex
Probe interface 2, with automatic identification function to support multiple probes.
Interface Chinese/English/Russian/Spanish/French/Arabic/Vietnamese/Portuguese/Indonesian
Display mode B, B+B, 4B, B+M, M
Electron focusing four segment electron focusing
Postural markers 97 species
Probe 3.5MHz Convex Probe: 2.0MHz, 2.5MHz, 3.5MHz, 4.0MHz, 5.0MHz

5.0MHz Micro Convex probe: 4.0MHz, 4.5MHz, 5.0MHz, 6.5MHz, 7.0MHz

6.5MHz Trans vaginal probe: 5.0MHz, 5.5MHz, 6.5MHz, 7.5MHz, 8.5MHz

7.5MHz Linear probe & Rectal Probe: 5.5MHz, 6.5MHz, 7.0MHz, 7.5MHz, 9.0MHz

Image mirroring upper and lower mirrors, left and right mirrors, black and white flip, in any mode can be mirrored conversion, operation
Image rotation 0 degrees, 90 degrees, 180 degrees, 270 degrees, and 360 degrees.
Measurements distance, circumference, area, volume, heart rate, gestational age

(BPD, GS, CRL, FL, HC, AC, EDD, AFI) and expected date of birth, fetal weight display and so on.

The function software package and measurement method can be selected through the track ball cursor.
Angle measurement, you can intuitively see the angle and length of the angle.
Have histogram function
Have depth measurement function
It has 16 obstetric measurement packages and has fetal growth curve function.
In any imaging mode, the data can be measured in real time
Automatic memory and generative function of obstetric data
Character display date, clock, name, sex, age, doctor, hospital, annotation (full

screen character editing) (a mixed editor for letters, numbers, punctuation, and arrows)

One key out of patient information entry function
Movie playback 512 frames, continuous playback or one by one view.
Permanent storage built in 8G memory, more than 4000, supporting U disk storage (available for storage).
Single memory image time less than 6 seconds
A key to find saved images, can be found by the date named folder quickly found and a key export.
Gray scale 256 leveL
With the function of puncture and guidance, the angle and position of the two puncture lines can be adjusted visually.
Lithotripsy positioning, dynamic target tracking function
Dynamic range 0-135dB, step 8, with independent buttons, visually adjustable,

adjustable cycle.

Intelligent TGCcontrol 8 segments.
Total gain 0-100, step 2
Variable aperture, dynamic trace, dynamic digital filtering, etc.
2 stage visible tunable harmonics of tissue
8 kinds of fake color processing, etc.
The 4 frames are independent keys, visually adjustable, cycle adjustable, and can also be changed through the track ball cursor.
6 kinds of line correlation, with independent buttons, visually adjustable, circular adjustment, or track ball cursor changes.
The 8 types of gamma correction are independent keys, visually adjustable, cycle adjustable, and can also be changed through the trackball cursor.
Edge enhancement 4 level adjustable, with independent buttons, visually adjustable, adjustable cycle, also can be changed through the track ball cursor.
The scanning range can be adjusted 4 levels, with independent buttons, visually adjustable, circular adjustment, and also can be changed by the track ball cursor.
Luminance key addition and subtraction enhancement and weakening function
Caps and Shift locking functions
Blind area less than 4
Maximum display depth 3.5MHz: 126-307mm 6.5MHz: 189mm

7.5MHz: 40-166mm 5.0MHz: 205mm

Geometric accuracy transverse less than 5%, longitudinal less than 5%
Resolution the side is less than 2mm, and the axis is less than 1mm
Interface RS-232 interface, VGA interface, VIDEO interface, USB interface.
Display rate 6 display modes; lesion diagnosis is more accurate. In the case of x

1.5 and X 1.8, the display of depth can be raised

Starting time less than 10 seconds
The button has a buzz sound, but open / close
Formulae of fast data measurement
You can quickly set time, name and other editors through the track ball and keyboard.
Accessories ultrasonic imaging workstation



  1. Medical device quality management system (ISO13485) certification
  2. Equipment inspection report
  3. EC Authentication
  4. Two years of quality assurance
