Defibrillator AM-DEF-8000D

AM-DEF-8000D

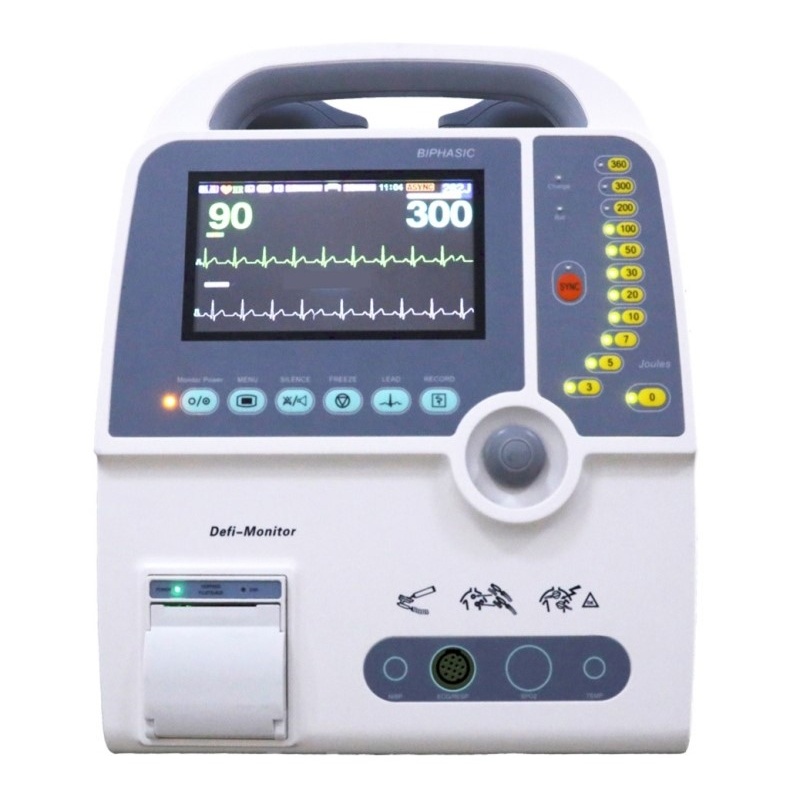

Defibrillator AM-DEF-8000D

Defibrillation

-Waveform: biphasic

-Defibrillation type: Manual synchronous/asynchronous external defibrillation.

-Charging time: less than 10 seconds at 360 Joules

- Energy display: The monitor display shows both the selected and supplied energy.

-Charging prompt type: voice and visual prompts.

- Energy selection: selectable at 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules

- Standard adult/pediatric paddles: reusable external adult paddles (integrated pediatric paddles)

Power requirements

-AC-DC dual use: use batteries, AC100V~240V, 50/60Hz.

-Vehicle voltage (option): DC 12V Li-ion battery

Battery Description

-Standard type: Li-ion battery Li1104c 11.1 Vdc 4000 mAh X2

-Standard capacity: up to 10 hours of ECG monitoring or 60 full energy discharges.

-Low battery indicator: The flashing low battery icon on the screen and the bat indicator on the challenge-monitor panel are on

-Recharge rate: 80% in 3 hours. 100% in 5 hours.

Display stand

-Screen type: high resolution display

-Screen size: 7 inches (17.7 cm) diagonal

-Scanning speed: 12.5 / 25 / 50mm / sec

-Information: heart rate, lead, alarm on/off, energy delivered

-Resolution: 480 * 272 pixels

ECG

-Patient connection: 3-lead ECG cable or 5-lead ECG cable, paddles.

-Head selection: displayed on monitor, paddles, I, II, III, AVR, AVL, AVF, V.

-ECG Size: 2.5, 5, 10, 20, 30 mm/mV display on the monitor.

-Heart rate: 20-350BPM.

-Protection: With 4000vAc/50Hz voltage support in isolation and work against electrosurgical knife and defibrillation

Built-in recorder

-Paper: 50 mm thermal.

-Printing method: High resolution thermal print head.

- Recording date, time sweep speed, waveform gain, heart rate, energy (joule) and ECG waveform

-Print mode

HR exceeds alarm recording limits

Timed automatic recording

Real-time recording

 Defibrillation discharge trigger recording

Standard configuration

Biphasic defibrillation, ECG, Recorder

Technical Specifications

PARAMETER

SPECIFICATION
