Scope of Application
On the clinical, checkup with vulva, vagina, cervix and other parts.
Functions
-Abundant image database of cases (up to 175 kinds), convenient for doctor to make a
comparative analysis.
-Advanced image processing technology, can achieve the functions of mark, area calculation, zoom in and out.
-With the editing functions of access images, freezing, collection, delete images, etc.
-Images can be collected continuously, and display a number of images on the same screen and convenient to contrast, full-screen display.
-The reports can be printed into multiple formats.
Composition

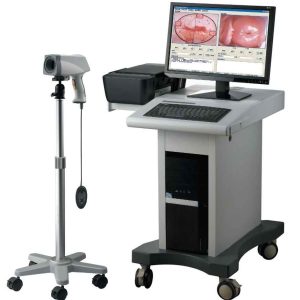

Camera, software, stand, computer, monitor, printer, trolley.
Technical Specifications
PARAMETER
SPECIFICATION
1/4” High-resolution color digital CCD.
Automatic focus and manual focus control.
Video output.
Automatically adjust white balance.
LED light source, brightness adjustable
Light Source Illumination
Not less than 1200 Lux
Light Source Irradiated surface temperature
Not exceed 41℃
Work Distance
200mm～400mm
Display Screen Resolution
Not less than 1024*768pixel
Camera Resolution
>480 lines
Camera Magnification
Continuously adjustable from 1 to 264 times
Signal Noise Ratio of Lens
≧50dB
Focusing Distance
10~800mm
Magnification Times
≧252 times
Power Supply
AC220V 50Hz or AC110V 60Hz
Input Power
Not more than 200VA
Stand
Upper arm can be up and down vertically
Footswitch
Capture pictures convenient and flexible
Control Handle
With control handle design, when inconvenient to use mouse operation, can handle the images zoom in and out, focus far and focus near, etc.
Security Category
Photographic equipment Class II
