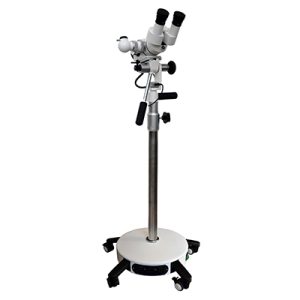

Colposcope AM-II-1L
- Home
- Colposcope AM-II-1L
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Introduction
ARI-II Series Colposcopes are precise optical instruments designed especially for the gynecologic examination and diagnosis. Due to the magnification of the instrument, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly seen with the instrument. Therefore, the correctness of a diagnosis is enhanced significantly. ARI-II Series Colposcopes are featured for sharp image, wide field of view, uniform illumination, adjustable brightness, and easy operation. They are the essential instruments for gynecologic examination.
Technical Specifications
PARAMETER
SPECIFICATION
Observation Angle
45°tilted
Magnification of Eyepiece
16X
Interpapillary Distance
50mm-80mm
Diopter
±5D
Focal length of objective
F=300mm
Magnification Changer
5-step: 0.4X, 0.66X, 1X, 1.5X, 2.5X
Total Magnification
2.7X, 4.4X, 6.6X, 10X, 16.6X
Linear Field
90mm, 55mm, 37mm, 24mm, 15mm
Fine Focusing Distance
60mm
Illumination
Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx
Filter
Build-in green & blue filter
Stand
Column height adjustable fitted on the 5-jaws round base with casters
With beam splitter and video camera adapter, C-mount 1/3-inch video camera attachable.
Power Supply input
AC100V-240V, 50HZ-60HZ
Power supply adapter
DC12V3A, 36W
Optional Accessories
Demonstrator, Camera (U3CMOS03100KPA, XCAM1080P2MPA, XCAM1080PHD, WUCAM0720PA, FHD2100, HD200), SLR camera adapter, Monitor S24R352FHC, Objective (F=230mm & F=280mm),Colposcope Image Capturing and Reporting App Software
