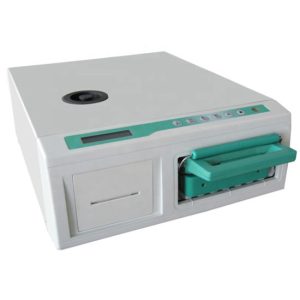

Cassette Type Sterilizer AM-N Series

Cassette Type Sterilizer AM-N Series

Product Instruction

Digital Cassette Sterilizer is a fully automatic rapid sterilization equipment that uses pressure steam as a medium. Suitable for sterilization of medical devices that can withstand steam pressure, such as dental handpieces, ophthalmic precision instruments, dental rigid endoscope and surgical instrument, etc.






The entire process takes only 9-12 minutes. Applicable to continuous surgery to improve clinical work efficiency.


Reduce the heating time of sterilization equipment and extend the service life of the equipment.


The sterilization box can be used as a vehicle, and one machine can be equipped with multiple boxes, which is easy to operate.


digital intelligent control, sterilization curve, pressure, temperature, time, status can be real-time displayed; alarm record, sterilization record can be digitally saved.

A variety of parameter output methods:

U disk storage, built-in microcomputer control system storage, standard equipped with built-in printer.

Technical Specifications

Sterilization program Class
Unwrapped instrument N
Hollow unwrapped instrument 1 S
Hollow unwrapped instrument 2 S
Hollow wrapped instrument 1 S
Hollow wrapped instrument 2 S
Rubber 1 S
Rubber 2 S
Design pressure 0.28Mpa
Temperature display accuracy 0.1°c
Design temperature 142°c
Cavity material SUS304 stainless steel
Sterilization temperature 121°C-134°C
Maximum working pressure 0.23Mpa
Temperature uniformity Range: 1.0~50.0ml, (0.1ml step)
Interface ≤+0.5°C
Optional USB real-time sterilization data storage

Optional multiple sterilization racks

Order No. Volume Water tank Volume Chamber size (mm) Dimensions


NW Voltage Frequency Power
N-2L 2L 3L 280x180x38 556x476x168 40KG 220V 50HZ 1.3Kw
N-5D 5L 5L 380x180x80 595x476x208 45KG 220V 50HZ 1.3Kw
N-5DL 5.2L 5L 490x180x80 595x476x208 45KG 220V 50HZ 1.3Kw
