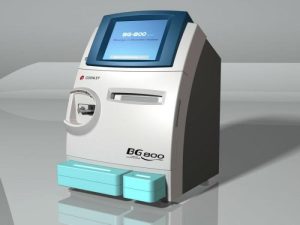

Blood Gas Analyzer AM-BG-800

Blood Gas Analyzer AM-BG-800

Dimension (Length*width*Height) 420mm×623mm×410mm

Weight 25KG

<b><strong>Main Characteristics</strong></b>

–Multi-combination parameters

–Self-made maintenance free electrodes

–Both for syringes &amp; capillary

–35UL for capillary, 95UL for whole blood

–1 min from the aspiration to result

–Long-lasting fluid system

–All-in-one design calibrate cartridge

–Cartridge expiration alarm &amp; residue

–Preheats reagents &amp; sample

–Optional Auto QC cartridge with H/M/L level

–Data storage &gt;5,000

–Colorful touch screen with high resolution

–Friendly operation interface

–Infrared human-detector

–Rich data management interface

–Battery backup

–Build-in thermal printer

–Convenient bar-code system management

–Economic cost per test




Sample Type

Whole blood, Serum, Plasma, Dialysate, CSF

Model name & test items

BG-800 (pH/pCO2/pO2/K+/Na+/CI-/Ca++/Hct )

BG-800A (pH/ pCO2/ pO2 /Hct )

BG-800B (pH/pCO2/pO2/K+/Na+/CI-/Hct )

BG-800E (pH/pCO2/pO2/K+/Na+/CI-/Ca++/Hct /Glu/Lac)

Working environment

Working temperature:15℃~30℃

Storage environment:5℃~45℃

Power supply:100-240V~±10&,50/60±1Hz   Power:150VA

Measured Parameters

Analyte Measuring range Unit
pH(CH) 6.000-9.000
pCO2 1.607-26.67 kpa
8.0-200.0 mmHg
pO2 0-106.7 kpa
0-800.0 mmHg
K 0.5-15.0 mmol/L
Na+ 20.0-200.0 mmol/L
CI- 20.0-200.0 mmol/L
Ca++ 0.3-5.0 mmol/L
HCT 12.0-65.0 %
B.P. 500-800 mmHg
Glucose 1.1-66.7 Mmol/L
Lactate 0.4-30.0 Mmol/L
