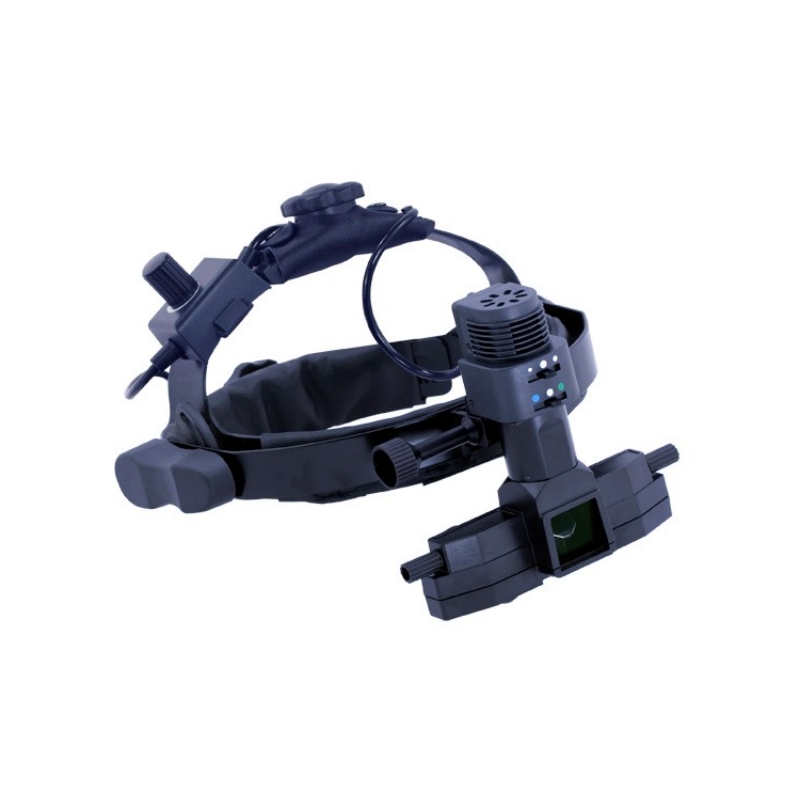

Binocular Indirect Ophthalmoscope AM-YZ25B

Characteristics

  1. Advanced optical design avoids the glistening and provides the broad filed.
  2. Super-light one piece design. It’s soft and comfortable enough to wear with the adjustable height and width.
  3. Equipped with +20D aspheric lens which provides clear image.
Compare



Technical Specifications

PARAMETER SPECIFICATION
Visual Angle 45°±5°
Pupil Distance 52mm-74mm
Weight ≤320g(excluding the head frame)
Adjustable Range of the Head Frame Head Perimeter:530mm-630mm
Depth 85mm-125mm
Illimination Source 6V/10W halogen bulb
Input Voltage AC220V±22V/50Hz±1Hz、AC110V±11V/60Hz±1Hz
