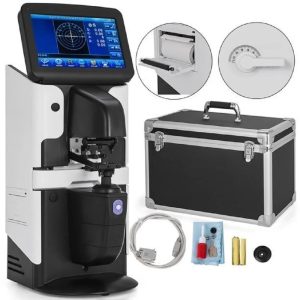

AUTO LENSMETER AM-JD-2600A/JD-2600B

AM-JD-2600A/JD-2600B

AUTO LENSMETER AM-JD-2600A/JD-2600B

Features

Adjustable LCD display screen

Tilt color screen provides you with clear view from any position such as sitting and standing.



Sensitive touch LCD display screen

You just touch the screen to finish your measurement, the operation could be easier and more convenient. This new generation auto lensmeter is based on Hartmann Sensor technology. Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.



Measurement screen

Easy to use with recognizable icons.

The JD-2600A provides a user-friendly graphical interface for an immediate understanding.



Progressive measurement

A graph helps the operator to improve accuracy and speed in the measurement of near and far vision.



Automatic recognition of single and progressive lens



Hi-speed UV measurement

Just hold the lens through the sensor, the display will easily indicate the UV measurement by the progress bar.



Built-in thermal printer

Quick data print with built-in printer. Easy to reload printing paper.

Built-in UV tester

Technical Specifications

PARAMETER

SPECIFICATION

Range of measurement
Sphere
0~±25D 0.01/0.12/0.25D step
Cylinder
0~±9.99D 0.01/0.12/0.25D step
Axis
0~180° (1° step)
Add
0~+9.99D 0.01/0.12/0.25D step
Prism degree
0~15△ 0.01/0.12/0.25D step
Measurement mode
Cylinder
+,+/-,-
Prism
X-Y, P-B
Contact lens
Soft/hard
Measuring mode
Single/progressive/ automatic recognition
Specification
Diameter of lens
Φ20~108mm
PD
40~90mm, 0.5mm step
Speed of measurement
0.1s
Display
JD-2600A: 7” TFT LCD JD-2600B: 5.6” TFT LCD
Printer
Thermal printer
Dimension
222(D)mmX161(W)mmX372(H)mm
Package
515(H)mmX320(W)mmX390(D)mm
Weight
~5.5kg
Power supply
100~240V 50~60Hz
