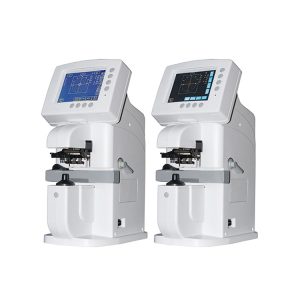

AUTO LENSMETER AM-JD-2000/2000B

Features

Tilting LCD display screen

Tilting color screen provides you with clear view from any position such as sitting and standing.

Sensitive touch LCD display screen

You just touch the screen to finish your measurement, the operation could be easier and more convenient.

Measurement menu

Easy to use with recognizable icons.

The JD-2000 series provide a user-friendly graphical interface for an immediate understanding.

Progressive measurement

A graph helps the operator to improve accuracy and speed in the measurement of near and far vision.

Automatic recognition of single and progressive lens

Hi-speed UV measurement

Just hold the lens through the sensor, the display will easily indicate the UV measurement by the progress bar.

Built-in thermal printer

Quick data print with built-in printer. Easy to reload printing paper.

Difference:

JD-2000 AUTO LENSMETER with UV and printer

JD-2000B AUTO LENSMETER without UV and printer

Category:
Compare



Technical Specifications

Range of measurement
Spherical 0~±25D 0.01/0.12/0.25D step
Cylinder 0~±9.99D 0.01/0.12/0.25D step
Axis 0~180° (1° step)
Add 0~+9.99D 0.01/0.12/0.25D step
PD 0~15  0.01/0.12/0.25D step
Measurement mode
Cylinder +,+/-,-
Prism X-Y, P-B
Contact lens Soft/hard
Measuring mode Single/progressive/ automatic recognition
Specification
Diameter of lens Φ20~108mm
PD 40~90mm, 0.5mm step
Speed of measurement 0.1s
Display 7” TFT LCD
Printer JD-2000: Thermal Printer

JD-2000B: No Printer

Dimension JD-2000&JD-200B:196mmX286mmX442mm
Weight ~6kg
Power supply 100~240V   50~60Hz
