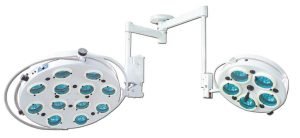

Aperture Series Operating Lamp AM-L1205L

Aperture Series Operating Lamp AM-L1205L





AM-L1205L, AM-L12L, AM-L09L use of multiple different sources, by focusing knob, so the beam is irradiated from different locations surgery, reduce the shadow medical staff head, hands and other parts caused. The illumination can be adjusted according to actual needs.


– The no welding titanium alloy main arm is adopted, so that the appearance is aesthetic and the rotation is more flexible and convenient.

– The removable handle sheath can be disinfected at the high temperature of 135℃.

– The depolished panel made of imported material makes the light rays softer.

– The imported switch power supply is adopted to control the voltage, making the work voltage permanently stable.

– The special radiation filter reducing the heat to the minimum level.

– The multi-flake retroreflector made of imported aluminum sheet has the features of no

coating film and never fading.

– Imported lamp receptacle, Tungsten halogen bulbs of international brand are adopted with the average service more than 1500 hours.

– Light adjustment circuit adopts CPU control, enabling increase or decrease of illumination and boasting brightness memory.

– One lamp holder with two bulbs enables automatic operation of the standby bulb in 1/2 second when the main bulb malfunctions, and it has indicators for the damage of main or standby bulb.

Technical Specifications

Major Bulb Illumination ≥160,000LX
Color Temperature 4000K±500K
Color Rendering Index 100≥Ra≥85
Depth of Light Beam ≥500mm
The Value of the Total Irradiance (service range for temperature rise≤10℃) ≤6mW/m²lx
Total Irradiance (temperature rise on the head of patient under surgical operation≤2℃) ≤600W/m²
Mains Voltage AC220V±10%, 50Hz
Bulb Voltage AC24V Bulb Power
Bulb Power 425W
Input Power 500VA
Height for Installation 280-320cm
Note: If you want use halogen bulbs, please mention before your order.
