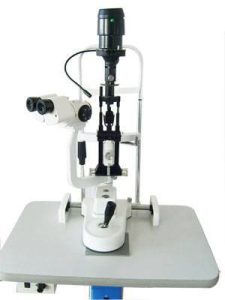

5 Steps Slit Lamp AME-5D
- Home
- 5 Steps Slit Lamp AME-5D
Personal Protective Equipment
Laboratory Equipment
Operating Theatre Equipment
Description
Galilean unparalleled Optical give this slit lamp high depth of field view.
-Galilean optical path provides high depth of view and large -angle observation.
-5-step revolving drum magnifications, more convenient
-All of the lens are multi-coated, mildewproof and anti-reflection
-Excellent optical materials gives stable performance
Technical Specifications
PARAMETER
SPECIFICATION
Microscope Type
Parallel Stereoscope
Magnification
Five steps magnifications
Eye piece
12.5x
Total Magnification and Diameter of Visual Field(mm)
6x, 10x, 16x, 25x, 40x
Adjustable Range of Pupil Distance(mm)
55~85
Adjustable Diopter
＞±7D
Slit Width(mm)
0-14mm adjustable
Slit Height(mm)
1-14mm adjustable
Slit Angle
0~180°
Slit Inclination
5°, 10°, 15°, 20°
Light Spot Diameter (mm)
Φ9, Φ8, Φ5, Φ3, Φ2, Φ0.2 Or Φ14, Φ8, Φ5, Φ3, Φ2, Φ0.2
Filters
Heat Absorption, Grey, Red Free, Cobalt B
Fixed view lamp
Red LED
Illumination Bulb
12V / 50W or 12V/30W halogen bulb
Background Light
Halogen lamp
Voltage/frequency
AC220V,50Hz or AC110V, 60Hz
Power
80VA
Chin-rest Vertical Movement
>80mm
Base Longitudinal Movement
>90mm
Base Lateral Movemen
>100mm
Base Vertical Movement
>30mm
Optional: Instrument table, Applanation tonometer, Smartphone adaptor
