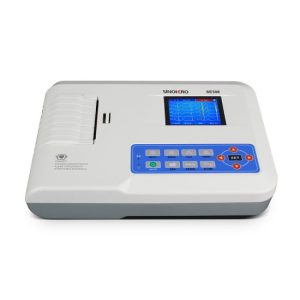

3 Channel ECG Machine With Color Screen AM-ECG-C03B

3 Channel ECG Machine With Color Screen AM-ECG-C03B


  1. Compact in size, easy and direct operation, portable
  2. Accurate pace pulse identification and automatic analysis function.
  3. Four working modes: Manual / Auto / Physical Examination / Storage
  4. 80mm, 3 channel format recording
  5. Freeze function: can replay 12 seconds cardiograph front and back
  6. Fast ECG test under the [Physical Examination], saving power and paper
  7. Store and replay cardiograph without printing parameters and diagnosis under the Storage Mode.
  8. 3.5” 320×240 graphic 3.5 inch color screen
  9. Adapt to 110-230V, 50/60Hz AC power supply. Built in rechargeable Li-ion battery.
  10. 12 lead waveforms view with 250 patient information storage(Extendable)
  11. Built-in USB, RS232 interface, EXGNET software optional
  12. USB interface for net transmission, USB flash disk and USB printer.



Technical Specifications

Lead Standard 12 leads
Lead acquisition 12bit/1000Hz(synchronously 12 leads)
Work mode MAN, AUTO, ANALYSIS Modes
Filter AC Filter : 50Hz / 60Hz

EMG Filter : 25Hz / 45Hz

Anti-Drift Filter :  0.15Hz (Adaptive)

CMMR ≥100dB (with AC FILTER)
Input circuit Floating; Protection circuit against

Defibrillator effect

Input Impedance ≥50MΩ
Input  circuit current ≤0.05μA
Patient current leakage <10μA
Calibrating voltage 1mV±2%
Voltage tolerance ≥±500mV
Time constant ≥3.2s
Frequency response 0.05~160Hz(-3db)
Noise level <15μVp-p


Sensitivity 5,10,20, 40, Auto (mm/mV)
Recording mode Default Man. Mode is 3 ch format

Default Auto. Mode is 3 ch+ format

Paper speed 6.25、12.5、25、50mm/s(±3%)
Paper 80mm *20m Roll paper
Communication RS232/ USB port
Power Supply AC  110-230V( ±10%),50/60Hz ( ±1Hz),60VA

DC Built-in rechargeable battery,14.4V(2000mmAh)

Dimension/Weight 300mm×230mm×72mm/2.8Kg
